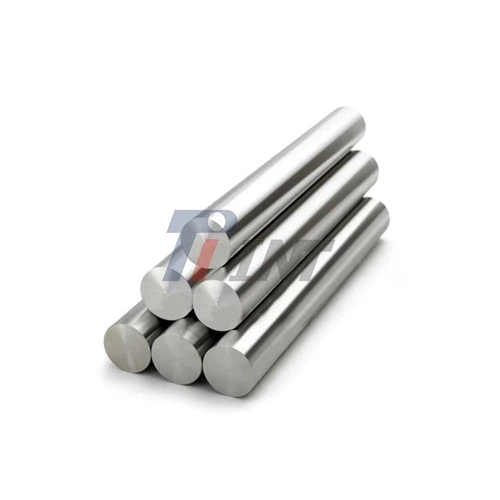

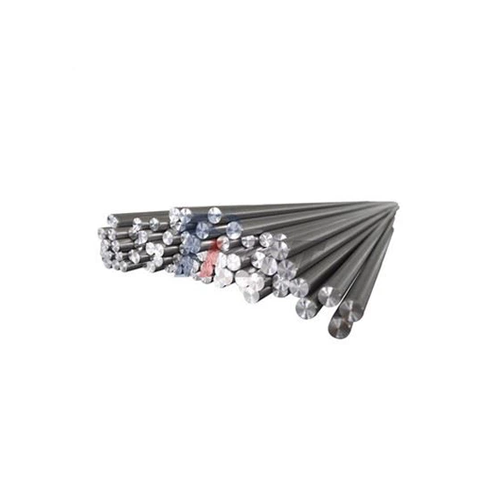

Gr 4 Titanium Bar Dia 6mm

Gr 4 Titanium Bar Dia 6mm - High-Performance Medical Grade Round Bar for Precision Manufacturing

Baoji INT Medical Titanium Co., Ltd. specializes in manufacturing Gr 4 Titanium Bar Dia 6mm with superior mechanical properties and exceptional corrosion resistance. With a history of over 30 years in the titanium sector, our factory was founded in 2003 and produces medical grade titanium bars according to ISO9001:2015, ISO13485:2016 and EU CE standards. This product has a minimum yield strength of 480 MPa, the strongest commercially pure titanium grade. We can manufacture to h7-h9 tolerances for precision production – perfect for swiss-lathe machining and automated-bar feeder systems. The interstitial elements (hydrogen content < 0.015%) are controlled strictly to provide dependable operation in demanding applications.​​​​​​​

• Technical Specifications and Material Properties

  The Grade 4 titanium is the highest strength level in commercially pure titanium grades. It has good formability, improved mechanical qualities and fills the gap between pure titanium and titanium alloys.

  The applications benefit from a material that can survive tremendous stress, yet still be biocompatible. The 6 mm diameter form provides the ideal balance for precise machining operations.

  Property	Specification	Standard
  Diameter	6mm	ASTM B348
  Grade	Grade 4 (UNS R50700)	ASTM F67
  Yield Strength (Min)	485 MPa	ASTM B348
  Tensile Strength (Min)	580 MPa	ASTM B348
  Elongation (Min)	15%	ASTM E8
  Density	4.51 g/cm³	-
  Oxygen Content	0.35-0.40%	ASTM E1409
  Hydrogen Content	≤0.015%	ASTM E1447

  Superior Corrosion Resistance for Demanding Environments

  Grade 4 titanium has excellent resistance to chemical damage in aggressive industrial environments. Your equipment is protected in chloride situations where stainless steel breaks quickly.

  The material develops a stable passive oxide layer which rapidly repairs when damaged. This self-healing characteristic prevents the pitting corrosion and stress corrosion cracking so typical in marine applications.

  Our bars have proven performance in petrochemical plants, oil and gas facilities and chemical processing equipment. The 6mm diameter size is ideal for pump shafts, valve components and fastener manufacture where reliability is key.

  Precision Manufacturing and Dimensional Control

  INT uses high-end centerless grinding technology for a better surface polish and close tolerances. Your machining processes benefit from continuous diameter control and little runout.

  We stock bars in conventional lengths from 2000mm to 3000mm, with longer lengths up to 6000mm available on request. Straightness is maintained to better than 0.5mm per metre to prevent whipping during high speed milling.

  The Gr 4 Titanium Bar Dia 6mm arrives ready for Swiss-lathe operations with chamfered ends and polished surfaces. Our descaled and pickled finish ensures no alpha-case contamination interferes with your fabrication processes.

  Medical Device Applications and Biocompatibility

  This grade of material has important applications in the manufacture of orthopaedic and surgical instruments. You get bars that are dual-certified to ASTM B348 industrial standards, and ASTM F67 medical specifications.

  The increased strength of Grade 4 lends itself well to surgical instruments where rigidity and durability are required. Its mechanical qualities are advantageous for dental implants abutments, orthodontic archwires and bone fixation devices.

  Our rigorous quality control includes ultrasonic testing to ASTM B548 to identify interior problems. Chemical composition study checks the quantities of interstitial elements that may compromise biocompatibility or long-term performance.

  Machining Recommendations and Tool Life Optimization

  Titanium is a poor heat conductor, thus the heat is concentrated at the cutting edges . This calls for particular machining procedures. Use carbide tooling with positive rake angles and high pressure coolant delivery.

  Use cutting speeds 40-60% lower than those for steel. It is useful to vary the spindle speed during a cut to reduce harmonic vibration which causes chatter and premature tool wear.

  The 6mm diameter offers good stiffness in turning operations when properly supported. Use sharp instruments and lighter cuts to reduce work hardening of the surface layer.

  Quality Assurance and Material Traceability

  Every batch undergoes comprehensive testing before shipment. Your order includes EN 10204 3.1 Mill Test Certificates providing complete traceability to the original ingot.

  We conduct tensile testing per ASTM E8 and bend testing per ASTM E290 to verify mechanical properties. Surface inspection ensures freedom from scratches, seams, or oxide scale that could affect your final product quality.

  Ultrasonic examination detects internal discontinuities larger than 1.5mm equivalent flat-bottom hole size. This rigorous inspection protocol guarantees material integrity throughout the bar's cross-section.

Product Technology and Production Process

Industries Catered

Our products are widely used in medical, automotive, aerospace, chemical, scientific and technological manufacturing and electronic information industries.

Our Factory - A Legacy of Excellence

Founded in 2003 by titanium industry expert Mr. Zhan Wenge, Baoji INT Medical Titanium Co., Ltd. has grown into a benchmark enterprise in the R&D and production of medical titanium materials. With more than 30 years of experience, INT is deeply invested in the development of high-quality titanium for the medical sector. We provide a full range of titanium products, including pure titanium, Ti6Al4V ELI titanium, and custom titanium alloy forgings.

Packaging and Transportation

Why Choose Us?

Choosing Baoji INT Medical Titanium Co., Ltd. means partnering with a trusted leader in the medical titanium industry.

Here’s why:

Proven Expertise: Over 30 years of experience in medical titanium production.
Advanced Technology: State-of-the-art production lines and equipment.
International Certifications: ISO9001:2015, ISO13485:2016, and EU CE certifications.
Comprehensive Support: We provide ongoing technical support, ensuring our products fit seamlessly into your manufacturing process.
Customer-Centric Approach: Committed to delivering high-quality products on time, every time.
For inquiries or orders, please contact us at export@tiint.com. We look forward to partnering with you for your medical titanium needs.

FAQ

Q: What distinguishes Grade 4 from Grade 2 titanium bars?

A: Grade 4 offers significantly higher strength with yield strength around 480 MPa compared to Grade 2's 275 MPa. The increased oxygen content in Grade 4 enhances strength while maintaining good ductility and excellent corrosion resistance.

Q: Can you supply material certificates for aerospace applications?

A: Yes, we provide complete material traceability documentation including chemical composition analysis, mechanical test results, and heat treatment records. Certification to AMS specifications available upon request.

Q: How does the 6mm diameter affect machinability?

A: The 6mm size provides excellent stability during machining with minimal deflection. It fits standard collet sizes and bar feeders used in Swiss-type CNC machines, allowing for efficient high-volume production.

Q: Is this material suitable for seawater exposure?

A: Absolutely. Titanium Grade 4 demonstrates exceptional resistance to seawater corrosion, chloride attack, and marine biofouling. It outperforms stainless steel and nickel alloys in saltwater environments.

Q: What surface finishes are available?

A: We offer peeled finish (h9-h11 tolerance) for general applications and centerless ground finish (h6-h7 tolerance) for precision machining. Polished and descaled surfaces come standard to prevent contamination.

Q: Can bars be cut to custom lengths?

A: Yes, we accommodate custom length requirements with precision saw cutting. Lengths from 500mm to 6000mm can be supplied with deburred and chamfered ends ready for your production line.
