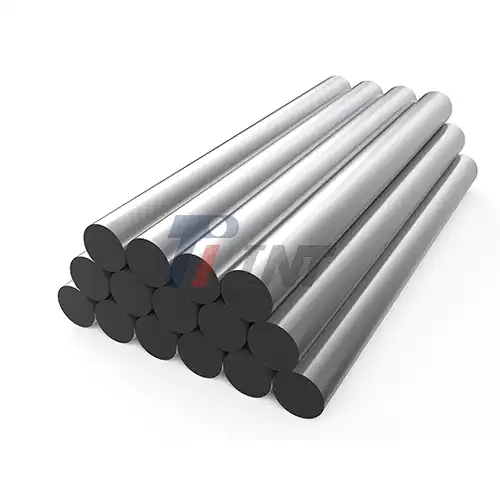

Gr1 Medical Titanium Bar 8mm
Lightweight and extremely durable material.
Corrosion-resistant for long-term use.
High strength-to-weight ratio for flexibility.
Excellent fatigue resistance for durability.
Customizable to suit surgical needs.
Reliable in critical medical environments.
All products have passed ISO9001:2015, ISO13485:2016, EU CE safety certification
Gr1 Medical Titanium Bar 8mm – Premium Biocompatible Material for Surgical Implant Applications

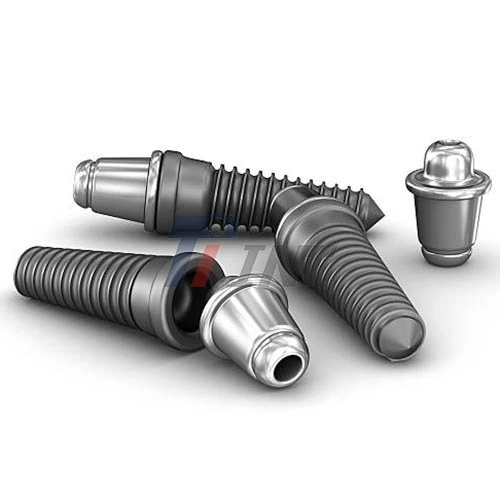

Baoji INT Medical Titanium Co., Ltd., established in 2003, delivers enterprise-grade Gr1 Medical Titanium Bar 8mm engineered to ASTM B348 and ISO 5832-2 specifications. Manufactured through precision cold-rolling and annealing processes, this commercially pure titanium bar achieves tensile strength of 240 MPa minimum, yield strength ranging from 138-310 MPa, and exceptional elongation exceeding 24%. With oxygen content controlled below 0.18% and iron levels under 0.20%, our 8mm diameter bars provide optimal formability for orthopedic implants, dental prosthetics, and reconstructive surgical instruments. Every batch undergoes ISO13485:2016 certified quality verification, ensuring consistent biocompatibility and structural integrity for critical medical device manufacturing.
Technical Specifications of Medical Grade Titanium Bars
Our product features industry-leading chemical composition and mechanical properties that meet global medical device standards.
|
Property |
Specification |
|
Diameter |
8mm (±0.05mm tolerance) |
|
Tensile Strength |
≥240 MPa |
|
Yield Strength |
≥170 MPa |
|
Elongation |
≥24% |
|
Oxygen Content |
≤0.18% |
|
Iron Content |
≤0.20% |
|
Density |
4.51 g/cm³ |
|
Compliance Standards |
ASTM B348, ASTM F67, ISO 5832-2 |
The ultra-low interstitial element composition ensures superior cold-working capabilities. You can easily bend, form, or machine these bars without risk of microcracking, a common failure point in inferior titanium products.
|
|
|
Superior Biocompatibility for Implantable Devices
Material safety must never be compromised in the course of manufacturing surgical instruments or implantable components. The product possesses excellent tissue compatibility as well as the inert oxide layer generation.
This passive barrier avoids the leaching of ions into the body fluids, reducing inflammatory responses. Clinical studies have shown stable in vivo contacts between Grade 1 titanium and bone tissue for over 20 years. Your patients have a lower chance of rejection than with stainless steel alternatives.
Its non-magnetic characteristics make it compatible with MRI scanning methods. Post-operative imaging is free from artefact and allows accurate diagnosis during the healing period.
Unmatched Corrosion Resistance in Physiological Environments
Surgical implants are constantly exposed to saline solutions, blood plasma and strong body enzymes. Our titanium medical bars are resistant to severe corrosive environments and will not degrade.
The material can sustain structural integrity in chloride rich environments with concentrations more than 3.5%. You will not be subjected to pitting corrosion and crevice assaults as seen in cobalt-chromium alloys in comparable situations.
Temperature fluctuations during sterilization cycles pose no risk. Whether you use autoclave steaming at 134°C or ethylene oxide gas treatment, the Gr1 Medical Titanium Bar 8mm retains full mechanical properties across 500+ sterilization cycles.
Precision Manufacturing for Complex Medical Components
Baoji INT uses innovative cold rolling technology to produce tight tolerances. Our 8mm bars are manufactured to a tolerance of 0.05mm diameter along the whole length of the bar.
The surface roughness values are lower than Ra 0.8µm in the as provided state. This mirror-like gloss decreases the possibility of bacterial adherence and speeds up bone integration, for implant applications. You can machine complex shapes directly without heavy pre-finishing.
This means a predictable machining behaviour for homogeneous microstructures. Our annealing method results in equiaxed alpha grains at ASTM E112 size 7 or finer, which eliminates directional property changes that hinder CNC programming.
Lightweight Strength for Enhanced Patient Comfort
Titanium parts are 45% lighter than identical stainless steel parts, with a density of just 4.51 g/cm³. This weight reduction is crucial in cranial plates, spinal rods, and external fixation devices where patient comfort effects the recovery success.
The product, however light, offers strength-to-weight ratios that exceed standard medical alloys. You can create narrower cross-sections that reduce surgical invasiveness, while preserve load bearing capacity.
The material's elastic modulus of 103 GPa is more similar to human cortical bone than steel equivalents. This compatibility reduces the stress-shielding effect that causes bone resorption surrounding implants.
Comprehensive Quality Assurance Systems
Every production batch is subjected to multi-stage verification methods certified under ISO13485:2016 medical device standards. Quality control starts with the capacity to trace source material back to a heat number record.
Chemical analysis, such as ICP-OES spectrometry and inert gas fusion testing, is used to determine the amounts of interstitial elements. Tensile properties are confirmed on representative samples from each manufacturing lot by mechanical testing in accordance with ASTM E8.
Ultrasonic Testing: For detection of internal discontinuities > 0.4mm diameter. Surface examination procedures identify scratches, seams or inclusions that may impact the performance of the implant. Each shipment is fully backed by material certification documents for your regulatory compliance requirements.
Product Technology and Production Process
Hot rolling and forging techniques that enhance the mechanical properties, ensuring superior strength and toughness.
Ultrasonic testing to detect flaws and ensure 100% reliability.
Strict quality control at every stage of production, meeting and exceeding international medical standards like ISO9001:2015 and ISO13485:2016.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Industries Catered
Our products are widely used in medical, automotive, aerospace, chemical, scientific and technological manufacturing and electronic information industries.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Our Factory - A Legacy of Excellence
Founded in 2003 by titanium industry expert Mr. Zhan Wenge, Baoji INT Medical Titanium Co., Ltd. has grown into a benchmark enterprise in the R&D and production of medical titanium materials. With more than 30 years of experience, INT is deeply invested in the development of high-quality titanium for the medical sector. We provide a full range of titanium products, including pure titanium, Ti6Al4V ELI titanium, and custom titanium alloy forgings.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Packaging and Transportation
![]() |
![]() |
![]() |
Why Choose Us?
Choosing Baoji INT Medical Titanium Co., Ltd. means partnering with a trusted leader in the medical titanium industry.
Here’s why:
Proven Expertise: Over 30 years of experience in medical titanium production.
Advanced Technology: State-of-the-art production lines and equipment.
International Certifications: ISO9001:2015, ISO13485:2016, and EU CE certifications.
Comprehensive Support: We provide ongoing technical support, ensuring our products fit seamlessly into your manufacturing process.
Customer-Centric Approach: Committed to delivering high-quality products on time, every time.
For inquiries or orders, please contact us at export@tiint.com. We look forward to partnering with you for your medical titanium needs.



FAQ
Q: What makes Grade 1 different from Grade 2 medical titanium bars?
A: Grade 1 contains lower oxygen levels than Grade 2, resulting in softer material with superior formability. This makes it ideal for applications requiring complex bending or deep drawing, such as custom implant fabrication.
Q: Can you supply bars in custom lengths?
A: Yes, we cut the product to your specified lengths with precision sawing. Standard production lengths range from 1000mm to 6000mm, with custom sizing available for high-volume orders.
Q: How do these bars perform during welding procedures?
A: The material exhibits excellent weldability using TIG or plasma arc methods under argon shielding. The low oxygen content prevents embrittlement in heat-affected zones, maintaining ductility throughout welded joints.
Q: What surface finishes are available?
A: We offer bright annealed, pickled, or ground surface conditions. Bright annealed surfaces provide the smoothest finish for implant-grade applications, while pickled surfaces suit further machining operations.
Q: Do you provide material traceability documentation?
A: Every shipment includes mill test certificates showing chemical composition, mechanical test results, heat treatment records, and compliance statements for ASTM F67 and ISO 5832-2 standards.
Q: What minimum order quantities do you require?
A: We accommodate orders from single bars for prototype development to multi-ton contracts for production manufacturing. Contact our team to discuss your specific volume requirements.
Partner With a Trusted Medical Titanium Specialist
Contact export@tiint.com today to discuss your Gr1 Medical Titanium Bar 8mm specific application requirements and receive technical support from our engineering team.
