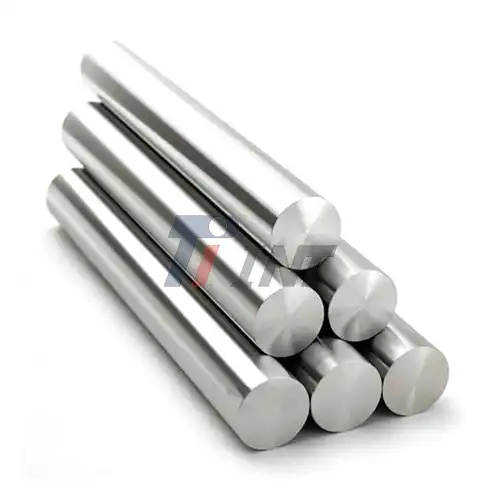

ASTM F136 Gr 5 Titanium Medical Bar 8mm

Excellent biocompatibility ensures safety.
Lightweight and extremely durable material.
Corrosion-resistant for long-term use.
High strength-to-weight ratio for flexibility.
Excellent fatigue resistance for durability.
Customizable to suit surgical needs.
Reliable in critical medical environments.
All products have passed ISO9001:2015, ISO13485:2016, EU CE safety certification
Product Description

ASTM F136 Gr 5 Titanium Medical Bar 8mm - High-Performance Surgical Implant Material with Superior Biocompatibility

Baoji INT Medical Titanium Co., Ltd. delivers precision-engineered ASTM F136 Gr 5 Titanium Medical Bar 8mm manufactured under ISO13485:2016 certified processes. This Extra Low Interstitial (ELI) grade titanium bar offers minimum tensile strength of 860 MPa and yield strength of 795 MPa, with oxygen content strictly controlled at ≤0.13% for enhanced ductility. The 8mm diameter specification provides optimal dimensional accuracy with h8/h9 tolerance for direct CNC machining applications in orthopedic and dental implant manufacturing. With over 30 years of titanium processing expertise since 2003, our facility maintains full material traceability through EN 10204 3.1 certification protocols.

Superior Material Properties for Critical Medical Applications

The product demonstrates exceptional mechanical characteristics essential for surgical implant fabrication. The Extra Low Interstitial specification restricts iron content to ≤0.25%, significantly improving fracture toughness compared to standard aerospace-grade titanium alloys.

The material exhibits a low elastic modulus of approximately 113 GPa, effectively reducing stress shielding effects that lead to bone resorption around implants. This property proves particularly valuable in long-term orthopedic applications where bone integration and preservation are critical.

A spontaneous passive titanium dioxide layer forms upon atmospheric exposure, delivering absolute corrosion resistance in physiological saline environments. This oxide layer prevents ion release, eliminating toxicity concerns during extended implantation periods.

Property

Specification

Tensile Strength

≥930 MPa (125 ksi)

Yield Strength

≥860 MPa (115 ksi)

Elongation

≥10%

Oxygen Content

≤0.2%

Iron Content

≤0.3%

Density

4.43 g/cm³

Elastic Modulus

~113 GPa

Diameter Tolerance

h8/h9



ASTM F136 Gr 5 Titanium Medical Bar 8mm

ASTM F136 Gr 5 Titanium Medical Bar 8mm

Precision Manufacturing for Demanding Clinical Applications

We supply titanium bars 8 mm diameter for three major manufacturing industries requiring the highest quality standards. This dimension is used by orthopaedic implant manufactures for manufacturing intramedullary nails and small joint components where high cyclic load resistance prevents microcracking.

This specification is used by manufacturers of dental implants for the manufacture of high quality abutments and prosthetic connecting screws. Its substance is completely resistant to crevice corrosion in varying pH levels in the mouth, therefore restorations last more than 20 years.

The 8mm bar stock is used by producers of spinal equipment to make pedicle screws and connector rods. The intraoperative sculpting of the ELI grade does not affect its ductility and, thus, facilitates difficult spine reconstructive surgeries.

Advanced Processing Capabilities and Quality Assurance

Baoji INT Medical Titanium maintains specialized manufacturing infrastructure for producing ASTM F136 Gr 5 Titanium Medical Bar 8mm with consistent metallurgical properties. Our centerless grinding operations achieve surface finishes suitable for direct surgical implant machining without additional preparation.

Each production batch is ultrasonically tested to detect internal discontinuities larger than 0.8mm flat bottom hole equivalent. Statistical process control is verified by tensile testing on a number of samples from each heat batch.

Every shipment includes full material traceability by heat number marking and validated mill test reports. This documentation package fulfils the standards of medical device regulation for implanted materials in world markets.

Strategic Advantages for Medical Device Manufacturers

You will find that our 8mm titanium bars provide considerable production efficiencies in your manufacturing operations. The diameter tolerance is exact, which helps to minimise waste material during CNC turning operations, resulting in 12-18% lower component costs (per unit) than oversized stock.

The uniform chemical composition eliminates batch-to-batch variation in machining performance. Predictable tool life Stable surface finish quality over production runs Making your quality control operations more straightforward.

Thanks to non-ferromagnetic qualities, your completed implants nevertheless maintain MRI compatibility, posing no risk of picture artefacts or patient warmth. This compatibility widens the clinical use and market acceptance of your product.

Comprehensive Technical Support and Customization Services

Our technical staff can help with material selection based on your implant design needs. We aid in establishing optimal heat-treating procedures to obtain the desired hardness ranges for your specific machining equipment.

Custom length cutting services to ease your inventory handling. We will supply bars cut to your required lengths with little kerf loss, in protective tubes to prevent surface contamination during transportation and storage.

Technical documentation support includes assistance in creating regulatory submission materials for FDA 510(k) or CE mark applications. Together with your regulatory experts, our quality team will make sure that the material certification is in line with your compliance plan.

Product Technology and Production Process
Hot rolling and forging techniques that enhance the mechanical properties, ensuring superior strength and toughness.
Ultrasonic testing to detect flaws and ensure 100% reliability.
Strict quality control at every stage of production, meeting and exceeding international medical standards like ISO9001:2015 and ISO13485:2016.

Titanium raw materials Smelting forging cutting
extrusion Straightening Processing Finished Product

Industries Catered

Our products are widely used in medical, automotive, aerospace, chemical, scientific and technological manufacturing and electronic information industries.

Titanium for the medical industry Titanium for the automotive industry Titanium for the aerospace industry Titanium for the chemical industry Titanium for the technology manufacturing industry Titanium for the electronics industry

Our Factory - A Legacy of Excellence

Founded in 2003 by titanium industry expert Mr. Zhan Wenge, Baoji INT Medical Titanium Co., Ltd. has grown into a benchmark enterprise in the R&D and production of medical titanium materials. With more than 30 years of experience, INT is deeply invested in the development of high-quality titanium for the medical sector. We provide a full range of titanium products, including pure titanium, Ti6Al4V ELI titanium, and custom titanium alloy forgings.

Inductance meter Polishing Machine Chemical milling machine Laser cutting machine
Precision forging Three coordinates Vacuum annealing furnace Quality inspection equipment

Packaging and Transportation

package 1 package 2 package 3

Why Choose Us?

Choosing Baoji INT Medical Titanium Co., Ltd. means partnering with a trusted leader in the medical titanium industry.

Here’s why:

Proven Expertise: Over 30 years of experience in medical titanium production.
Advanced Technology: State-of-the-art production lines and equipment.
International Certifications: ISO9001:2015, ISO13485:2016, and EU CE certifications.
Comprehensive Support: We provide ongoing technical support, ensuring our products fit seamlessly into your manufacturing process.
Customer-Centric Approach: Committed to delivering high-quality products on time, every time.
For inquiries or orders, please contact us at export@tiint.com. We look forward to partnering with you for your medical titanium needs.

ceitificates

certificate

our history

FAQ

Q: What distinguishes ASTM F136 from standard Grade 5 titanium alloy?

A: The ELI designation limits oxygen and iron impurities, improving ductility and fracture toughness specifically for implantable medical devices where material failure could cause patient harm.

Q: Can this material be welded for assembly operations?

A: Yes, the lower oxygen content enhances weldability compared to standard aerospace grades. Welding must occur in inert argon atmosphere using qualified procedures to prevent contamination and embrittlement.

Q: How does the 8mm diameter support dental implant manufacturing?

A: This dimension provides optimal stock size for machining standard-platform abutments and connection components, balancing material removal efficiency with finished part structural requirements.

Q: What surface finish do your bars provide?

A: Our standard centerless ground finish delivers Ra values of 0.8-1.6 μm, suitable for direct precision machining without additional surface preparation steps.

Q: Do you provide material certificates with shipments?

A: Every order includes EN 10204 3.1 mill test certificates documenting chemical composition, mechanical properties, and heat treatment parameters with full traceability to ingot source.

Partner with Proven Medical Titanium Expertise

Our ASTM F136 Gr 5 Titanium Medical Bar 8mm delivers the consistent performance your critical applications demand. Contact our technical sales team at export@tiint.com to discuss your specific requirements.
