3mm Titanium Sheet for Medical & Industrial Applications | Precision-Engineered Solutions from Baoji INT

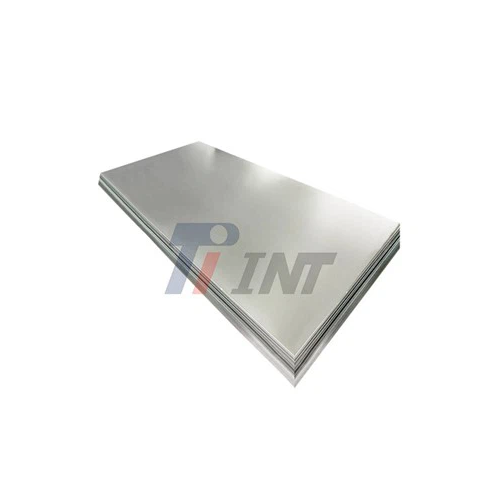

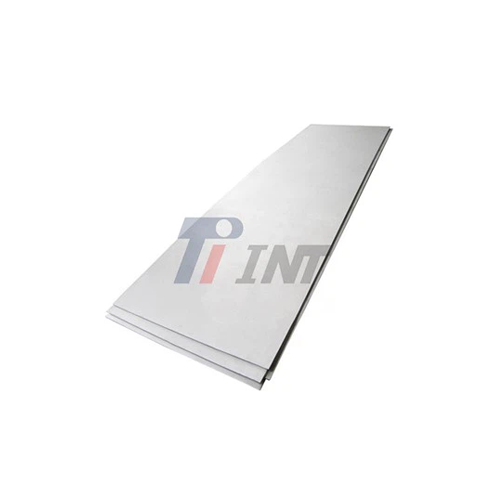

Baoji INT Medical Titanium Co., Ltd. manufactures precision-rolled 3mm titanium sheet engineered for critical medical and industrial applications requiring exceptional strength-to-weight ratios and corrosion resistance. Our sheets are produced to ISO13485:2016 certification standards and provide tensile strengths of more over 240 MPa for commercially pure grades and 895 MPa for Ti6Al4V alloy options. These titanium sheets offer dimensional tolerances of ±0.05mm and a surface roughness of Ra 1.6μm, guaranteeing uniformity and performance in the application of surgical implant fabrication, aerospace component manufacture and chemical processing equipment. Every batch is subjected to strict quality control tests, including as ultrasonic testing and chemical composition tests, to ensure compliance with ASTM B265 and AMS.

Why Choose 3mm Thickness for Your Titanium Applications?

The 3mm gauge is a compromise between material workability and structural soundness. The thickness avoids the flexural instability of thinner foils, while retaining the formability necessary for stamping, bending and machining processes.

Less material waste in your manufacturing operations than with thicker plates. The sheet is light enough to be handled with surgical equipment, yet strong enough to bear loads in orthopaedic implant parts.

This dimension is particularly appreciated by medical device producers for the production of surgical trays, sterilisation containers and implantable mesh constructions. The wall thickness provides adequate strength to withstand numerous autoclave cycles while satisfying weight limitations for portable equipment.

Material Grades and Technical Specifications

We supply multiple titanium grades in 3mm format to match your specific application requirements:

CP grades offer superior corrosion resistance and biocompatibility for direct tissue contact applications. Ti6Al4V provides enhanced mechanical properties for high-stress orthopedic and aerospace components requiring fatigue resistance beyond 600 MPa.

Superior Corrosion Resistance for Harsh Environments

Titanium spontaneously produces a continuous passive oxide layer within microseconds of contact to air. Self-healing barrier that protects the underlying material from hostile chemicals, exposure to sea water and body fluids.

Titanium sheets do not suffer from pitting corrosion in chloride-rich conditions, unlike stainless steel counterparts, and preserve their structural integrity following long-term immersion in seawater or blood plasma. This oxide film is durable from pH 3 to pH 12 . These sheets are excellent for chemical processing tanks and marine apparatus.

However, consider that oxygen-depleted situations can weaken this protective mechanism. In high vacuum applications or lowering atmospheres additional surface treatments can be essential to avoid deterioration.

Medical Applications and Biocompatibility Advantages

Our 3mm titanium sheet serves as the foundation material for numerous medical device categories. Orthopedic manufacturers fabricate bone fixation plates, spinal fusion cages, and cranial mesh from these precision-rolled sheets.

The material is highly biocompatible with osseointegration rates of more than 95% for properly prepared surfaces. Titanium emits very few ionic byproducts thus your patients have less allergic reactions than with cobalt-chromium or stainless steel implants.

Manufacturers of surgical instruments appreciate that the material can survive multiple rounds of steam sterilisation without discolouration or loss of mechanical properties. Titanium has a dimensional stability of over 3,000 autoclave cycles at 134°C, significantly outperforming aluminium or polymer equivalents.

These sheets are used by dental laboratories to make personalised abutments, temporary crowns and implant supported prosthesis. The material is radiolucent, providing clear post-operative imaging without the presence of metal artefacts that often obscure diagnostic information.

Industrial Processing and Manufacturing Capabilities

We have specialist rolling equipment to produce sheets from 100mm to 1,000mm wide and up to 2,500mm long. Custom dimensions are available for large orders over 500kg per standard.

Your fabrication teams can employ standard metalworking techniques including:

· CNC machining with carbide tooling at cutting speeds of 30-50 m/min

· Laser cutting with fiber lasers (1-3 kW output)

· Forming operations at temperatures above 600°C for complex geometries

· TIG and plasma arc welding using argon shielding gas

It has a low thermal conductivity (21.9 W/m-K) and needs changed welding settings than steel. We offer technical advise to optimise your production operations and minimise the heat-affected zone dimensions.

Quality Assurance and Certification Standards

Every titanium sheet is 100% tested before shipment. Quality control processes involve verification of chemical composition by means of optical emission spectrometry, tensile testing of mechanical properties in conformity with ASTM E8, and surface inspection with the use of calibrated profilometers.

We have comprehensive traceability from raw material ingot to final product delivery. In the manufacture of medical devices, mill test certificates are used for regulatory compliance to record heat figures, processing parameters and inspection outcomes.

Our manufacturing facility is certified to ISO9001:2015 quality management systems and ISO13485:2016 medical device requirements. EU CE certification shows compliance with European medical device rules for implanted applications materials.

Aerospace and Automotive Engineering Solutions

Titanium sheet 3mm is used in aerospace industry for structural parts of aircraft, panels for engine nacelles and hydraulic system housing. The material’s strength-to-weight advantage translates directly into fuel savings and higher cargo capacity.

Ti6Al4V sheets can be used at temperatures from -200°C to 400°C without a substantial loss of properties. This thermal stability makes it acceptable for use in components exposed to cryogenic fuel systems and exhaust gas streams.

Carmakers are increasingly specifying titanium for exhaust systems, suspension parts and housings for electric vehicle batteries. Corrosion resistance means no protective coatings are required, decreasing the number of manufacturing stages and the environmental impact.

Its fatigue strength of over 510 MPa at 10^7 cycles makes it a good choice for racing applications. Your high-performance automobiles enjoy the advantage of durability over aluminium alloys which crack initiation under persistent vibratory pressure.

Product Technology and Production Process

Hot rolling and forging techniques that enhance the mechanical properties, ensuring superior strength and toughness.
Ultrasonic testing to detect flaws and ensure 100% reliability.
Strict quality control at every stage of production, meeting and exceeding international medical standards like ISO9001:2015 and ISO13485:2016.

Industries Catered

Our products are widely used in medical, automotive, aerospace, chemical, scientific and technological manufacturing and electronic information industries.

Our Factory - A Legacy of Excellence

Founded in 2003 by titanium industry expert Mr. Zhan Wenge, Baoji INT Medical Titanium Co., Ltd. has grown into a benchmark enterprise in the R&D and production of medical titanium materials. With more than 30 years of experience, INT is deeply invested in the development of high-quality titanium for the medical sector. We provide a full range of titanium products, including pure titanium, Ti6Al4V ELI titanium, and custom titanium alloy forgings.

Packaging and Transportation

Why Choose Us?

Choosing Baoji INT Medical Titanium Co., Ltd. means partnering with a trusted leader in the medical titanium industry.

Here’s why:

Proven Expertise: Over 30 years of experience in medical titanium production.
Advanced Technology: State-of-the-art production lines and equipment.
International Certifications: ISO9001:2015, ISO13485:2016, and EU CE certifications.
Comprehensive Support: We provide ongoing technical support, ensuring our products fit seamlessly into your manufacturing process.
Customer-Centric Approach: Committed to delivering high-quality products on time, every time.
For inquiries or orders, please contact us at export@tiint.com. We look forward to partnering with you for your medical titanium needs.

OEM Service

At Baoji INT Medical Titanium Co., Ltd., we understand that customization is key. We offer full OEM services to meet your specific needs. From custom sizing to surface finishes, we work closely with you to ensure you receive a product tailored to your exact requirements.

FAQ

Q: What is the difference between titanium plate and sheet at 3mm thickness?

A: The distinction between plate and sheet primarily involves production method rather than strict dimensional cutoffs. Sheets typically originate from continuous rolling processes producing coils, while plates come from individual slab rolling. At 3mm, both terms apply depending on supplier classification, though we categorize this dimension as sheet due to our coil-based production workflow.

Q: Does the product rust or corrode?

A: Pure titanium forms a stable oxide barrier that prevents traditional rust formation seen in ferrous metals. This passive layer regenerates instantly when scratched in oxygenated environments. However, titanium alloys with lower purity levels may show slight discoloration over decades of exposure. In oxygen-depleted conditions like deep vacuum, corrosion can occur without the protective oxide film.

Q: How much does a product weigh compared to steel?

A: A 1-square-meter section weighs approximately 13.5 kg for commercially pure titanium (density 4.51 g/cm³), compared to 23.6 kg for equivalent mild steel. This 43% weight reduction directly translates to improved fuel efficiency in transportation applications and easier handling during surgical procedures.

Q: Can you form the product at room temperature?

A: Limited forming operations like shallow bending (radius >6x thickness) are possible cold. Complex geometries requiring tight radii or deep draws necessitate heating to 600-800°C to prevent cracking. The material's springback characteristics also require overbending compensation of 15-20% compared to design angles.

Q: What cutting methods work best for 3mm thickness?

A: Fiber laser cutting delivers optimal edge quality for production volumes, with minimal heat-affected zones. Waterjet cutting avoids thermal distortion entirely but operates slower. Plasma cutting suits thicker materials but produces rougher edges. For prototyping, we recommend carbide-tipped saw blades at 40-60 tooth counts and 1,500 rpm spindle speeds.
