Gr2 Medical Titanium Plate Thk 2mm
Lightweight and extremely durable material.
Corrosion-resistant for long-term use.
High strength-to-weight ratio for flexibility.
Excellent fatigue resistance for durability.
Customizable to suit surgical needs.
Reliable in critical medical environments.
All products have passed ISO9001:2015, ISO13485:2016, EU CE safety certification

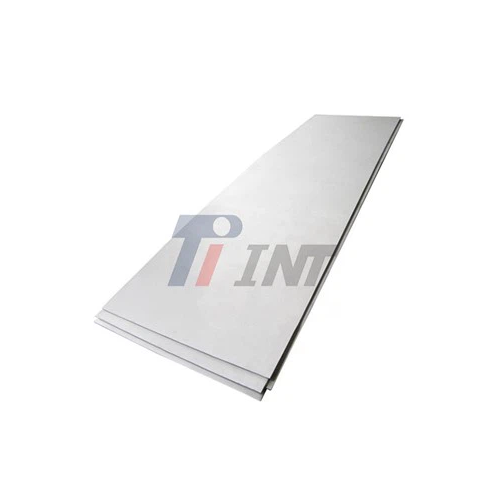

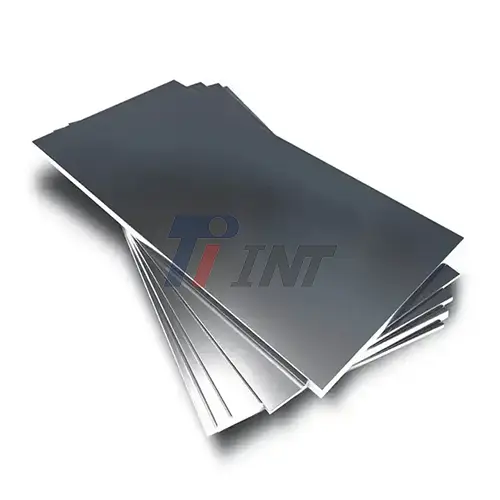

Gr2 Medical Titanium Plate Thk 2mm for Surgical Implants and Biocompatible Applications
Baoji INT Medical Titanium Co., Ltd. manufactures Gr2 Medical Titanium Plate Thk 2mm engineered specifically for clinical surgical implantation and precision medical device fabrication. This commercially pure titanium plate delivers a tensile strength of ≥345 MPa and yield strength of ≥275 MPa while maintaining exceptional biocompatibility and formability. Certified under ISO13485:2016 and EU CE standards, our 2mm thickness profile balances structural integrity with lightweight performance, weighing only 4.51 g/cm³—approximately 45% lighter than stainless steel equivalents. Backed by over 30 years of titanium processing expertise since 2003, INT provides consistent material quality and reliable supply for orthopedic manufacturers, medical instrument producers, and rehabilitation equipment developers worldwide.
Technical Specifications of Gr2 Medical Titanium Plate Thk 2mm
This medical-grade plate conforms to ASTM B265 and ASME SB-265 international standards. The precisely controlled interstitial elements ensure predictable mechanical performance and weldability across production batches.
|
Property |
Value |
Standard |
|
Thickness |
2.0 mm |
±0.05 mm tolerance |
|
Density |
4.51 g/cm³ |
45% lighter than steel |
|
Tensile Strength |
≥400 MPa |
ASTM B265 |
|
Yield Strength |
≥275 MPa |
ASTM B265 |
|
Elongation |
≥25% |
Excellent formability |
|
Iron Content (Fe) |
≤0.30% |
Controlled purity |
|
Oxygen Content (O) |
≤0.25% |
Enhanced ductility |
|
Corrosion Resistance |
Immune to body fluids |
TiO2 passive layer |
|
Biocompatibility |
Full compliance |
ISO 10993 approved |
|
|
|
Why Choose 2mm Thickness for Medical Applications?
The 2mm gauge is an ideal engineering compromise for surgical applications. Thinner profiles do not have the stiffness required for load-bearing implants, while broader parts add additional mass and complication in machining.
Your trauma plate makers are going to love the structural integrity of this thickness in bone fixation operations and the precision of CNC machining for screw holes and anatomical contouring. The material's minimum 20% elongation allows for controlled bending without micro-cracking, vital for custom-fitted implants.
For tray producers, this corrosion immunity means that their products will last longer, as they will be exposed to repeated sterilisation processes in autoclaves and with chemical disinfectants. It will never pit or corrode like stainless steel alternatives when exposed to chloride solutions for long periods of time, keeping its surface intact forever.
Superior Biocompatibility and Implant Performance
Material safety is the first priority for medical device producers, before any other standards. The commercially pure titanium plate develops a stable TiO2 oxide coating in microseconds when exposed to ambient conditions. The passivation layer stops the leaching of ions into the surrounding tissues, and therefore the allergic reactions, which may occur with nickel containing alloys.
The material’s modulus of elasticity (about 103 GPa) is closer to that of human cortical bone than cobalt-chromium alternatives. This mechanical similarity decreases stress shielding effects that can lead to loss of bone density adjacent to implant sites. Orthopaedic surgeons have shown that titanium fixation devices that are appropriately made have better long-term osseointegration outcomes.
Your quality control teams will be checking for uniform grain structure and surface finish across our production batches. The precision rolling process of INT removes internal cavities and guarantees homogeneous mechanical characteristics across the plate cross-section.
Processing Advantages for Device Manufacturers
Fabrication efficiency directly impacts your production costs and delivery schedules. Gr2 Medical Titanium Plate Thk 2mm exhibits excellent machinability compared to higher-strength alloys, reducing tool wear and cycle times during milling operations.
Blank preparation is still best done by waterjet cutting, as it does not produce any heat-affected zones that could damage material qualities. Argon shielding is needed for laser cutting which allows precise tolerances for complicated shapes.
The welding procedures require sufficient inert gas coverage on both sides of the joint. TIG welding with commercially pure titanium filler wire can generate welds stronger than the base material when executed under regulated atmospheric conditions. To prevent oxidation, your production engineers should keep argon purge gas flow until the weld zones cool below 400°C.
Cold forming operations are best when done within the recommended bend radius parameters, usually 3-4 times the material thickness. For tighter radii and more complex geometries modest preheating to 200-300°C enhances formability without affecting mechanical qualities.
Quality Assurance and Certification Standards
Every production batch undergoes rigorous testing before shipment. INT provides EN 10204 3.1 Material Test Reports documenting chemical composition analysis, tensile testing results, and dimensional verification data traceable to specific heat numbers.
Our ISO13485:2016 certified manufacturing process includes:
· Incoming raw material inspection with spectroscopic analysis
· In-process thickness and flatness measurements using calibrated micrometers
· Mechanical property validation through destructive testing of sample specimens
· Surface finish verification to ensure medical-grade smoothness
· Final dimensional inspection confirming thickness uniformity
Third-party biocompatibility testing confirms compliance with ISO 10993 standards for cytotoxicity, sensitization, and irritation. These certifications support your regulatory submissions to FDA, CE mark authorities, and other international medical device agencies.
Custom Solutions for Your Production Requirements
INT’s technical team interacts with your engineers to refine material specifications for specific applications. We can custom cut to your width and length specifications up to our mill capacity minimising your secondary processing processes.
Surface treatments may be mechanical polishing to a Ra 0.4 µm finish for aesthetic medical equipment or a maintained mill finish for components undergoing later anodising or coating operations. Edge conditioning services remove burrs and sharp corners that make it difficult to handle during assembly procedures.
Small production runs get the same quality attention as large volume orders. Our flexible manufacturing method can accommodate prototype development runs while still achieving economies of scale for high volume implant component production.
Packaging and Delivery Protection
We know the effect of surface pollution on titanium. Each plate is wrapped in protective polyethylene film and packed in hardwood cartons with moisture barrier liners. Sheets are interleaved for surface protection from scratches during shipping.
Material certificates, packing lists with heat number traceability and handling instructions unique to titanium items make up the shipping documents. Our logistics partners are trained in the shipment of medical material and know the needs of the carriers for valuable cargo.
Product Technology and Production Process
Hot rolling and forging techniques that enhance the mechanical properties, ensuring superior strength and toughness.
Ultrasonic testing to detect flaws and ensure 100% reliability.
Strict quality control at every stage of production, meeting and exceeding international medical standards like ISO9001:2015 and ISO13485:2016.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Industries Catered
Our products are widely used in medical, automotive, aerospace, chemical, scientific and technological manufacturing and electronic information industries.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Our Factory - A Legacy of Excellence
Founded in 2003 by titanium industry expert Mr. Zhan Wenge, Baoji INT Medical Titanium Co., Ltd. has grown into a benchmark enterprise in the R&D and production of medical titanium materials. With more than 30 years of experience, INT is deeply invested in the development of high-quality titanium for the medical sector. We provide a full range of titanium products, including pure titanium, Ti6Al4V ELI titanium, and custom titanium alloy forgings.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Packaging and Transportation
![]() |
![]() |
![]() |
Why Choose Us?
Choosing Baoji INT Medical Titanium Co., Ltd. means partnering with a trusted leader in the medical titanium industry.
Here’s why:
Proven Expertise: Over 30 years of experience in medical titanium production.
Advanced Technology: State-of-the-art production lines and equipment.
International Certifications: ISO9001:2015, ISO13485:2016, and EU CE certifications.
Comprehensive Support: We provide ongoing technical support, ensuring our products fit seamlessly into your manufacturing process.
Customer-Centric Approach: Committed to delivering high-quality products on time, every time.
For inquiries or orders, please contact us at export@tiint.com. We look forward to partnering with you for your medical titanium needs.



FAQ
Q: Can this material be sterilized using standard hospital protocols?
A: Absolutely. The plate withstands repeated autoclave cycles at 134°C, ethylene oxide gas sterilization, and gamma irradiation without degrading mechanical properties or biocompatibility. The stable oxide layer prevents corrosion from sterilant chemicals.
Q: What is the shelf life of the product?
A: When stored in dry conditions away from direct sunlight, the material has indefinite shelf life. Titanium does not age or corrode in atmospheric conditions, maintaining its certified properties for years.
Q: How does pricing compare to medical-grade stainless steel?
A: Initial material cost runs higher, but lifecycle analysis favors titanium for implantable devices. Superior corrosion resistance, biocompatibility, and strength-to-weight ratio eliminate revision surgeries caused by implant failure, delivering better patient outcomes and reduced long-term healthcare costs.
Q: Can you provide smaller cut-to-size pieces?
A: Yes. Our precision shearing and waterjet cutting services produce blanks to your specifications, minimizing material waste in your facility. Minimum order quantities apply based on cutting complexity.
Q: What lead times should we expect for bulk orders?
A: Standard thickness inventory typically ships within 5-7 business days. Custom width or length specifications require 3-4 weeks for production scheduling and quality verification. Contact our team for expedited processing options on urgent requirements.
Partner With INT for Reliable Medical Titanium Supply
Ready to specify Gr2 Medical Titanium Plate Thk 2mm for your next medical device project? Contact our medical materials specialists at export@tiint.com for detailed quotations.
