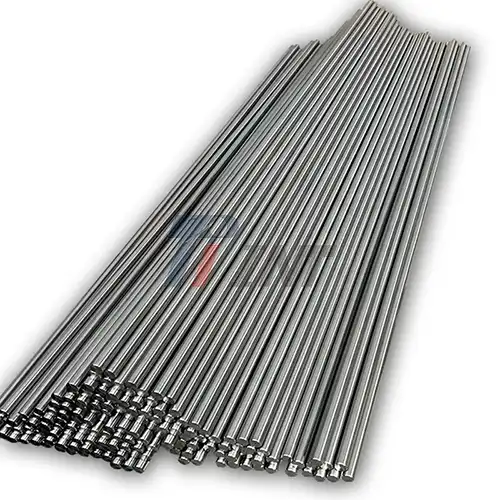

1 mm Titanium Rod Medical Grade – Ultra-Precision Implant Manufacturing Solution for Advanced Surgical Applications

Baoji INT Medical Titanium Co., Ltd. offers 1 mm titanium rod medical grade engineered specifically for micro-surgical implants and precision orthopedic devices. Manufactured under ISO13485:2016 and CE-certified quality systems, this ultra-fine titanium rod delivers dimensional accuracy within ±0.005mm tolerance, ensuring seamless integration into CNC machining processes for dental implants, spinal micro-screws, and maxillofacial reconstruction components. With over 30 years of titanium processing expertise since our establishment in 2003, we provide Ti6Al4V ELI and Grade 2 pure titanium options, both exhibiting superior biocompatibility, corrosion resistance exceeding 10-year implantation stability, and fatigue strength suitable for cyclic loading environments. Our advanced precision forging and centerless grinding capabilities guarantee surface roughness below Ra 0.4µm, critical for osseointegration success rates.

Why Ultra-Fine Diameter Titanium Rods Transform Minimally Invasive Surgery?

The trend toward minimally invasive procedures has created an unprecedented demand for micro-diameter implant materials. Conventional 2-3mm rods cannot overcome the anatomical limitations of paediatric orthopaedics, hand surgery repair, or future generation neurostimulation devices.

Our product overcomes three major manufacturing problems. Firstly it allows the manufacture of ultra-small fixation screws for cranio-facial surgery where the bone thickness is rarely greater than 4mm. Second, smaller material cross-section enables smaller incision sites and speedier patient recovery. Third, it has structural integrity in miniaturisation. Our rods can bear bending stresses up to 850 MPa and are 60% lighter than the corresponding stainless steel.

The alpha-beta microstructure of the material means that threading may be machined in a predictable way. You steer clear of the tool clatter and dimensional drift that’s prevalent with lower grade titanium feedstock.

Technical Specifications and Material Certifications

Advanced Processing Capabilities for Custom Micro-Implants

The flexibility of your suppliers to process will dictate your product development timetable. We offer full customisation from raw goods to completed implant components.

We can machine complex geometries such as helical threads down to M1.0 pitch, transverse holes as tiny as 0.3mm diameter and multi-axis contouring to match the anatomy using our precision machining center. Electrical discharge machining (EDM) can make complicated designs without the mechanical stresses that could reduce fatigue performance.

Available surface treatments include electropolishing to further reduce surface roughness, anodisation for colour coded surgical identification, and plasma nitriding to improve wear resistance in articulating joint applications. Each procedure preserves the biocompatible titanium oxide layer needed for cellular attachment during recovery.

To OEM partners building custom implant systems we offer quick prototyping with lead times of less than 15 days for first samples. All production lots are 100 % ultrasonically inspected to AMS 2631 Class A1 requirements for internal defect freedom.

Quality Assurance Protocol Meeting International Medical Standards

Material traceability starts with the choice of the ingot. We use only vacuum arc remelted (VAR) titanium billets with known melt chemistry to provide the interstitial element control required for ductility.

Six-stage verification is performed for each production lot of the product. Inert gas fusion chemical composition study shows oxygen and nitrogen levels that are in compliance with extra-low interstitial specifications. Tensile characteristics are validated by mechanical testing on miniaturised test items. Metallographic investigation showed homogeneous grain size and no contamination by alpha case.

Laser micrometres with 0.001mm resolution are used for dimensional inspection, measuring diameter at 500mm intervals along rod length. Surface integrity inspection using dye penetrant to discover cracks not visible to the naked eye examination under 10x magnification.

Final certification packages contain EN 10204 3.1 mill test reports, ASTM compliance statements and biocompatibility paperwork referencing ISO 10993 biological evaluation criteria. This documentation simplifies your regulatory submissions to FDA, EU MDR or other regional authorities.

Application Scenarios Driving Industry Adoption

Dental implant makers use our rods to make one-piece mini-implants for people who don't have enough bone density for regular implants. The 1 mm diameter makes it possible to put in narrow ridges where teeth are missing without having to do bone grafting.

Spinal device makers make polyaxial micro-screws for fixing the cervical pedicle when the size of the hardware is limited by the anatomy of the vertebrae. The high ratio of strength to diameter keeps the screw from breaking when insertion torque is applied.

For fixing a metacarpal fracture, hand surgeons need Kirschner wires and mini-plates. Our 1 mm titanium rod medical grade is stiff enough to keep the reduction in place, but not so heavy that it causes too much irritation to soft tissues while the body heals.

New uses for these materials include cochlear implant electrodes, retinal tack fixing devices, and next-generation neuromodulation leads. These all need to be biocompatible and MRI compatible.

Supply Chain Advantages of Direct Manufacturer Partnership

Through multi-tier logistics, intermediary distributors add 30–50% to the cost of goods sold and make wait times longer. These errors can be fixed by working directly with Baoji INT.

Our 20-year relationships with aerospace-grade titanium smelters provide raw material price stability and priority allocation during supply shortages. This upstream integration keeps your production schedules safe from changes in the market.

Flexible minimum order quantities start at 100 pieces for prototype phases, scaling to blanket purchase orders supporting your commercial launch volumes. Just-in-time delivery can be coordinated with your assembly schedules by consignment inventory systems.

Technical help goes beyond just providing materials. Our engineering team helps with improving implant designs, suggesting cutting parameters, and analysing failures if there are problems with how the implants work in the field. By working together, you can shorten the time it takes to do research and development and get approval from regulators.

Product Technology and Production Process
Hot rolling and forging techniques that enhance the mechanical properties, ensuring superior strength and toughness.
Ultrasonic testing to detect flaws and ensure 100% reliability.
Strict quality control at every stage of production, meeting and exceeding international medical standards like ISO9001:2015 and ISO13485:2016.

Industries Catered

Our products are widely used in medical, automotive, aerospace, chemical, scientific and technological manufacturing and electronic information industries.

Our Factory - A Legacy of Excellence

Founded in 2003 by titanium industry expert Mr. Zhan Wenge, Baoji INT Medical Titanium Co., Ltd. has grown into a benchmark enterprise in the R&D and production of medical titanium materials. With more than 30 years of experience, INT is deeply invested in the development of high-quality titanium for the medical sector. We provide a full range of titanium products, including pure titanium, Ti6Al4V ELI titanium, and custom titanium alloy forgings.

Packaging and Transportation

Why Choose Us?

Choosing Baoji INT Medical Titanium Co., Ltd. means partnering with a trusted leader in the medical titanium industry.

Here’s why:

Proven Expertise: Over 30 years of experience in medical titanium production.
Advanced Technology: State-of-the-art production lines and equipment.
International Certifications: ISO9001:2015, ISO13485:2016, and EU CE certifications.
Comprehensive Support: We provide ongoing technical support, ensuring our products fit seamlessly into your manufacturing process.
Customer-Centric Approach: Committed to delivering high-quality products on time, every time.
For inquiries or orders, please contact us at export@tiint.com. We look forward to partnering with you for your medical titanium needs.

OEM Service

At Baoji INT Medical Titanium Co., Ltd., we offer comprehensive OEM services to meet the unique needs of your projects. Our expert team can customize the 1 mm titanium rod medical grade to your exact specifications, whether it involves size, shape, or packaging. We work closely with your R&D team to ensure the highest level of product performance and quality, and ensure that our materials meet your production timelines.

FAQ

Q: What is the minimum bend radius before plastic deformation occurs?

A: For Ti6Al4V ELI grade 1mm rod, the minimum bend radius is approximately 10mm (10x diameter) at room temperature without inducing permanent set. Grade 2 pure titanium exhibits greater ductility, allowing 6mm radius bends. Tighter radii require controlled heating to 400-600°C.

Q: How does surface finish affect osseointegration in dental applications?

A: Our standard Ra 0.4µm finish promotes optimal bone cell attachment. Smoother surfaces below Ra 0.2µm may reduce initial protein adsorption, while rougher finishes above Ra 1.0µm increase infection risk through bacterial colonization. The 0.4µm specification balances biological performance with manufacturing consistency.

Q: Can these rods withstand sterilization cycles without property degradation?

A: Yes, the product tolerates repeated autoclaving at 134°C, gamma irradiation up to 50 kGy, and ethylene oxide exposure without measurable changes to mechanical properties or dimensional stability. Titanium's passive oxide layer regenerates after each sterilization cycle.

Q: What is the typical lead time for custom length orders?

A: Standard catalog lengths (100-1000mm) ship within 7 business days. Custom lengths or special surface treatments require 15-20 days for production and quality verification. Rush orders can be accommodated with 72-hour expedited processing for critical project needs.

Q: Do you provide material certifications compliant with EU MDR requirements?

A: Every shipment includes complete material traceability documentation: chemical analysis certificates, mechanical test reports, biocompatibility statements referencing ISO 10993 series, and declarations of conformity for EU MDR Annex I essential requirements. Additional regional certifications can be arranged.
