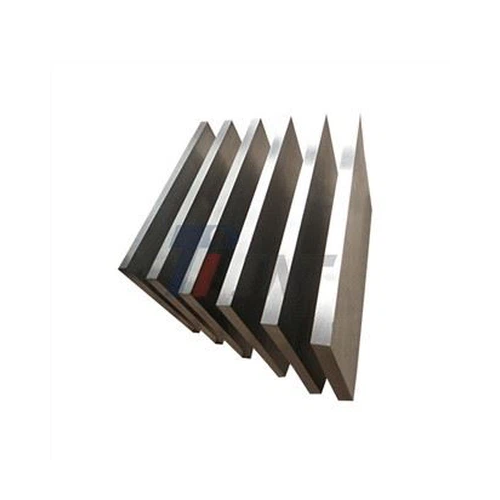

Gr5 Medical Titanium Plate
Lightweight and extremely durable material.
Corrosion-resistant for long-term use.
High strength-to-weight ratio for flexibility.
Excellent fatigue resistance for durability.
Customizable to suit surgical needs.
Reliable in critical medical environments.
All products have passed ISO9001:2015, ISO13485:2016, EU CE safety certification
Gr5 Medical Titanium Plate – High-Performance Surgical Implant Material with Superior Biocompatibility
Baoji INT Medical Titanium Co., Ltd. manufactures certified Gr5 Medical Titanium Plate engineered for demanding surgical implant applications. We are a specialised producer with over 30 years of titanium industry experience and we have been producing Ti-6Al-4V ELI alloy plates to ASTM B265, ISO 5832-3 and AMS 4911 specifications since 2003. Our plates have a minimum tensile strength of 895 MPa, minimum yield strength of 828 MPa, and density of 4.43 g/cm$^3$, leading to 60% weight reduction compared to stainless steel with excellent mechanical integrity. All goods are certified by ISO9001:2015, ISO13485:2016 and EU CE safety standard, to ensure the quality of the orthopaedic implants, trauma fixation devices and prosthetic components are uniform.
What Makes Gr5 Medical Titanium Plate the Preferred Choice?
The unusual mix of aluminium (5.5-6.75%) and vanadium (3.5-4.5%) leads to a two-phase alpha-beta microstructure. This metallurgical arrangement provides better strength to weight ratios for load bearing implants.
This alloy can be solution treated and aged (STA) techniques unlike the pure titanium grades. For some surgical applications, these heat treatments further improve mechanical characteristics.
The material develops a stable TiO2 oxide layer immediately upon contact with the physiological fluids. This inert coating prevents ion leakage and provides long-term stability of the implant in physiological settings.
Technical Specifications
|
Parameter |
Value |
Standard Reference |
|
Tensile Strength |
895-1000 MPa |
ASTM B265 |
|
Yield Strength |
≥830 MPa |
ISO 5832-3 |
|
Elongation |
≥10% |
AMS 4911 |
|
Density |
4.43 g/cm³ |
ASTM B265 |
|
Hardness |
30-36 HRC |
Industry Standard |
|
Aluminum Content |
5.5-6.75% |
ASTM B265 |
|
Vanadium Content |
3.5-4.5% |
ASTM B265 |
|
Maximum Oxygen |
0.20% |
ISO 5832-3 |
|
Operating Temperature |
Up to 400°C |
Material Data |
|
|
|
Key Performance Advantages for Medical Applications
Excellent Biocompatibility
The product is made from a biocompatible oxide surface, which leads to an excellent integration into the tissue. Clinical trials demonstrate low inflammation levels and good osseointegration rates. Patients gain from lower rejection chances and shorter healing times.
Superior Fatigue Resistance
Our plates have outstanding high and low cycle fatigue qualities and can tolerate repeated physiological loads. This property is important for joint replacement stems and spinal fixation devices. The material is not susceptible to crack propagation under dynamic stress conditions.
Corrosion Immunity
The passive TiO2 coating is completely resistant to body fluids including blood and synovial fluid. Our plates resist structural degradation by chlorides and proteins. Build your confidence with long-term performance of implants without worrying about degradation.
Optimal Strength-to-Weight Ratio
Our plates are 45% less heavy than stainless steel 316, reducing burden on the patient while retaining load bearing capacity. This weight advantage results in improved comfort in external fixation devices and reduced stress shielding in bone plates.
Manufacturing Capabilities and Customization
We provide precision processing services custom to your particular implant designs. Our high-tech CNC machining centers can produce complex geometries with tight tolerances.
Available in thicknesses from 0.5mm to 50mm for a variety of surgical uses. We may offer plates in the annealed or solution-treated condition depending on your strength requirements.
Heat impacted zones which can be detrimental to material qualities are not created by waterjet cutting technique. We also provide controlled bending services for plates that need forming procedures with suitable radius parameters to minimise cracking.
Quality Assurance and Testing Protocols
Before shipping, every batch goes through rigorous scrutiny. ASTM B548: Ultrasonic examination of plates over 6mm thick for internal discontinuities.
The chemical composition analysis was carried out by ICP-OES, and aluminium and vanadium contents were found to be within the specified limits. We control carefully the presence of interstitials, such as oxygen and hydrogen, to avoid embrittlement.
Mechanical testing comprises tensile tests at normal temperature and increased temperature. Microstructure investigation indicates a homogeneous grain structure with no alpha case development.
All items are shipped with Material Test Certificates (MTC) according to EN 10204 3.1 Full traceability is provided by these certificates which include the chemical composition, mechanical qualities and standards compliance.

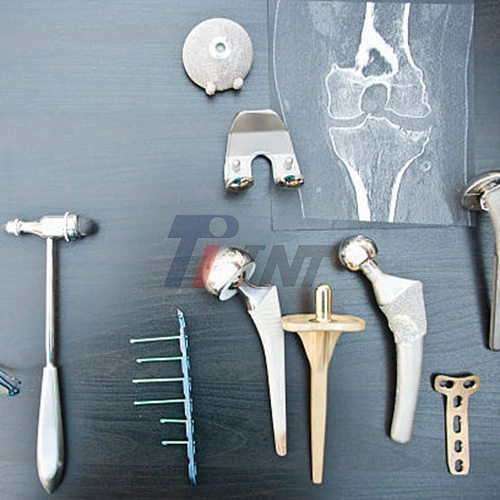

Application Areas in Medical Devices
Orthopedic Implants
Our plates serve as base material for bone fixation systems, including trauma plates and screws. The material's strength supports weight-bearing applications in femoral and tibial repairs.
Joint Replacement Components
We supply blanks for hip stem manufacturing and acetabular cup production. The fatigue resistance ensures long-term functionality in articulating surfaces.
Spinal Fusion Systems
Surgeons specify our Gr5 Medical Titanium Plate for interbody cages and pedicle screw systems. The radiolucent properties facilitate post-operative imaging while maintaining structural support.
Dental Implant Frameworks
The material's biocompatibility makes it ideal for custom abutments and implant bridges. Your dental applications benefit from corrosion resistance in the challenging oral environment.
Why Partner with Baoji INT Medical Titanium?
Every product benefits from three decades of experience in titanium metallurgy from our founder, Mr Zhan Wenge. This depth of knowledge means constant material performance and reliable technical support for your engineering team.
We have specialised lines for medical grade products to prevent cross-contamination. Each plate is manufactured to meet the quality standards of medical devices by complying with the ISO13485:2016 regulations.
Equipment verification and process validation are part of our quality management system at each step of the manufacturing process. You get products with full documentation and responsive customer service.
Product Technology and Production Process
Hot rolling and forging techniques that enhance the mechanical properties, ensuring superior strength and toughness.
Ultrasonic testing to detect flaws and ensure 100% reliability.
Strict quality control at every stage of production, meeting and exceeding international medical standards like ISO9001:2015 and ISO13485:2016.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Industries Catered
Our products are widely used in medical, automotive, aerospace, chemical, scientific and technological manufacturing and electronic information industries.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Our Factory - A Legacy of Excellence
Founded in 2003 by titanium industry expert Mr. Zhan Wenge, Baoji INT Medical Titanium Co., Ltd. has grown into a benchmark enterprise in the R&D and production of medical titanium materials. With more than 30 years of experience, INT is deeply invested in the development of high-quality titanium for the medical sector. We provide a full range of titanium products, including pure titanium, Ti6Al4V ELI titanium, and custom titanium alloy forgings.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Packaging and Transportation
![]() |
![]() |
![]() |
Why Choose Us?
Choosing Baoji INT Medical Titanium Co., Ltd. means partnering with a trusted leader in the medical titanium industry.
Here’s why:
Proven Expertise: Over 30 years of experience in medical titanium production.
Advanced Technology: State-of-the-art production lines and equipment.
International Certifications: ISO9001:2015, ISO13485:2016, and EU CE certifications.
Comprehensive Support: We provide ongoing technical support, ensuring our products fit seamlessly into your manufacturing process.
Customer-Centric Approach: Committed to delivering high-quality products on time, every time.
For inquiries or orders, please contact us at export@tiint.com. We look forward to partnering with you for your medical titanium needs.



OEM Service
At Baoji INT Medical Titanium Co., Ltd., we understand that each medical application has specific needs. That's why we offer customized solutions for Gr5 Medical Titanium Plates. Our OEM services allow us to adjust dimensions, thickness, and other specifications to match your exact requirements. Whether you're developing a new medical device or improving existing products, we provide the flexibility and support to ensure your success.
FAQ
Q: Can Gr5 titanium plates be effectively cold formed?
A: The alloy has lower ductility than pure titanium grades, requiring careful forming procedures. For 2mm thickness, maintain a minimum bend radius of 4-5 times the material thickness. Hot forming at controlled temperatures prevents cracking and spring-back issues in complex geometries.
Q: How does this material compare to stainless steel in surgical environments?
A: The product offers superior corrosion resistance, particularly against pitting in chloride-rich bodily fluids. The 45% weight reduction compared to SS316 decreases implant mass while providing comparable strength. Patients experience improved comfort and reduced stress on surrounding tissues.
Q: What cutting methods preserve material properties?
A: Waterjet cutting represents the optimal method for thin plates, eliminating heat-affected zones. Laser cutting requires full argon shielding to prevent alpha case formation on cut edges. Both methods maintain the material's mechanical integrity and biocompatibility.
Q: Is welding possible for fabricating complex implant structures?
A: Yes, but strict inert gas shielding on both weld surfaces prevents embrittlement. Use argon or helium atmospheres during TIG welding operations. Friction stir welding provides an alternative for thin sheets, producing high-quality joints without filler material.
Q: What documentation should accompany medical-grade plates?
A: Request Material Test Certificates per EN 10204 3.1 specification. Certificates must list complete chemical composition, mechanical test results including tensile strength and elongation, and explicit ASTM B265 or ISO 5832-3 compliance statements. This documentation ensures regulatory compliance and material traceability.
Contact Us for Technical Specifications
Our engineering team stands ready to assist with Gr5 Medical Titanium Plate material selection and custom processing requirements. Reach out to export@tiint.com for quotations and technical consultations today.
