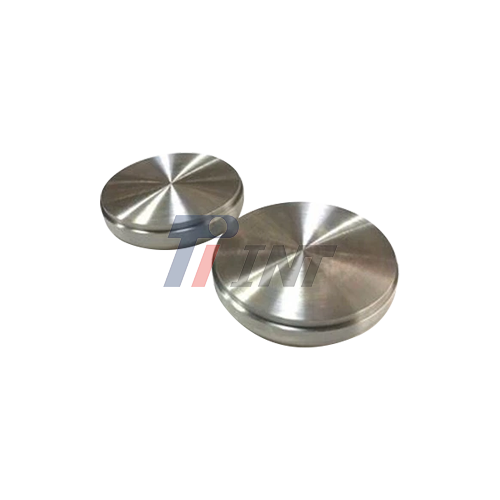

Gr 1 Titanium Disc
Corrosion-resistant for long-term use.
High strength-to-weight ratio for flexibility.
Excellent fatigue resistance for durability.
Customizable to suit needs.
All products have passed ISO9001:2015, ISO13485:2016, EU CE safety certification
Gr 1 Titanium Disc - Premium Commercially Pure Titanium Solution for Corrosive Environments
Baoji INT Medical Titanium Co., Ltd. delivers enterprise-grade Gr 1 Titanium Disc solutions backed by over 30 years of titanium manufacturing expertise since 2003. We produce our discs with a minimum titanium purity of 99.5% and tightly regulated interstitials (Fe ≤0.20%, O ≤0.18%) to achieve excellent ductility ≥24% elongation and tensile strength ≥240 MPa. All products are precision die forged and quality verified for consistent performance in medical implantation, chemical processing and marine applications where the highest corrosion resistance meets the most exacting formability requirements. Certified under ISO9001:2015, ISO13485:2016 and EU CE standards.
Understanding Commercially Pure Titanium Discs
The substance is the greatest purity level of the commercially pure titanium grades . It is an unalloyed alpha-phase titanium product that offers maximum corrosion resistance and outstanding ductility.
This grade provides excellent impact toughness and cold formability, unlike higher strength alloys. Its composition makes it well suited for deep-drawing procedures and explosive cladding situations when harder metals tend to break.
This disc that addresses the formability vs. corrosion issue in the industrial manufacture. It concerns component failures in harsh chemical environments and structural integrity under deformation.
Technical Specifications and Composition
|
Property |
Value |
Standard |
|
Titanium Content |
Balance (≥99.5%) |
ASTM B265/B381 |
|
Iron (Fe) |
≤ 0.20% |
ASTM B265 |
|
Oxygen (O) |
≤ 0.18% |
ASTM B265 |
|
Carbon (C) |
≤ 0.08% |
ASTM B265 |
|
Nitrogen (N) |
≤ 0.03% |
ASTM B265 |
|
Hydrogen (H) |
≤ 0.015% |
ASTM B265 |
|
Tensile Strength |
≥ 240 MPa |
ASTM B265 |
|
Yield Strength |
170-310 MPa |
ASTM B265 |
|
Elongation |
≥ 24% |
ASTM B265 |
The low interstitial element content ensures optimal softness and formability. Your applications benefit from the highest elongation rate among all commercially pure titanium grades.

Core Performance Advantages
Superior Cold Formability
In the course of manufacture the material behaves like soft copper. Manufacture complex shapes without the need for stress relief annealing, lowering your production time and costs.
Exceptional Corrosion Immunity
When exposed to oxygen, a stable TiO2 oxide coating is instantaneously formed. This passive layer is very resistant to seawater, moist chlorine gas, nitric acid and organic acids which attack traditional metals.
High Impact Toughness
The disc is held together structurally even when cold. Your vital components are still reliable in harsh operating circumstances without brittle failure.
Strength to Weight Ratio Light Weight
The material has a density of 45 % of steel but has comparable mechanical performance. You get a big weight saving in aeronautical and marine instrumentation applications.
Critical Industrial Applications
Energy Systems and Electrolysis
In chlor-alkali plants and PEM electrolysers, the product is used as current collector plates and anode substrates. It can survive the highly corrosive wet chlorine environment and remain electrically conductive for the long life of the electrochemical cell.
Manufacturing of Biomedical Implants
It is pliable, supple, and lends itself to surgical tailoring. Medical device makers machine the material into craniofacial plates, pacemaker housings, and dental meshes that surgeons may mould exactly to patient anatomy without risk of fatigue failure.
Marine & Desalination Equipment
Discs are used by operators as blind flanges and diaphragms for pressure sensors. It is resistant to pitting and crevice corrosion in high-pressure seawater up to 80°C, leading to greatly reduced maintenance downtime compared to stainless steel equivalents.
Chemical Processing Parts
Your equipment is free from chloride stress corrosion cracking. The discs are replacing heavier copper-nickel alloys in heat exchangers and reactor vessels exposed to oxidising acids.
Quality Assurance and Certifications
INT exercises tight quality control throughout manufacture. Optical Emission Spectrometry (OES) and Inert Gas Fusion are performed on every batch to verify the chemical composition thresholds.
We produce according to international medical device standards. You receive paperwork confirming compliance with ASTM B265, ASTM B381, and ASME SB265 for pressure vessel applications.
Each Gr 1 Titanium Disc is traceable through batch records. This ensures consistent material properties and regulatory compliance for your critical applications.
Precision Manufacturing Capabilities
INT operates advanced die forging and machining systems. Our facility produces discs from 50mm to 800mm diameter with thickness tolerances of ±0.1mm.
We provide customized finishing options including:
· Surface grinding to Ra 0.8μm roughness
· Edge machining for weld preparation
· Ultrasonic testing for internal defect detection
· Vacuum annealing for stress relief
Your specific dimensional requirements receive professional technical support. Our engineering team optimizes manufacturing parameters for your application demands.
Welding and Fabrication Guidance
The grade offers excellent weldability due to high purity. You can perform TIG or MIG welding without post-weld heat treatment when proper argon shielding protects the weld zone.
Recommended practices include:
· Back purging with argon to prevent oxidation
· Maintaining interpass temperature below 150°C
· Using ER Ti-1 filler material for matching properties
The welded joints retain ductility equivalent to base metal. Your fabricated assemblies maintain corrosion resistance without sensitization concerns.
Product Technology and Production Process
Hot rolling and forging techniques that enhance the mechanical properties, ensuring superior strength and toughness.Ultrasonic testing to detect flaws and ensure 100% reliability.
Strict quality control at every stage of production, meeting and exceeding international medical standards like ISO9001:2015 and ISO13485:2016.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Industries Catered
Our products are widely used in medical, automotive, aerospace, chemical, scientific and technological manufacturing and electronic information industries.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Our Factory - A Legacy of Excellence
Founded in 2003 by titanium industry expert Mr. Zhan Wenge, Baoji INT Medical Titanium Co., Ltd. has grown into a benchmark enterprise in the R&D and production of medical titanium materials. With more than 30 years of experience, INT is deeply invested in the development of high-quality titanium for the medical sector. We provide a full range of titanium products, including pure titanium, Ti6Al4V ELI titanium, and custom titanium alloy forgings.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Packaging and Transportation
![]() |
![]() |
![]() |
Why Choose Us?
Choosing Baoji INT Medical Titanium Co., Ltd. means partnering with a trusted leader in the medical titanium industry.
Here’s why:
Proven Expertise: Over 30 years of experience in medical titanium production.
Advanced Technology: State-of-the-art production lines and equipment.
International Certifications: ISO9001:2015, ISO13485:2016, and EU CE certifications.
Comprehensive Support: We provide ongoing technical support, ensuring our products fit seamlessly into your manufacturing process.
Customer-Centric Approach: Committed to delivering high-quality products on time, every time.
For inquiries or orders, please contact us at export@tiint.com. We look forward to partnering with you for your medical titanium needs.



FAQ
Q: What distinguishes Grade 1 from Grade 2 titanium discs?
A: Grade 1 contains lower iron and oxygen, resulting in softer material with yield strength around 170 MPa versus 275 MPa for Grade 2. Choose Grade 1 for deep drawing or lining applications; select Grade 2 for structural components requiring higher strength.
Q: Can these discs operate in continuous high-temperature service?
A: The material maintains properties up to 425°C, though we recommend continuous service below 315°C to prevent oxidation and creep under pressure loads. Consult our technical team for specific thermal cycling requirements.
Q: How do you verify authentic Grade 1 composition?
A: While portable XRF provides approximation, strict verification requires laboratory OES or Inert Gas Fusion testing. We confirm iron below 0.20% and oxygen below 0.18% as defining thresholds for Grade 1 classification.
Q: Is welding possible without property degradation?
A: Yes, the high purity eliminates post-weld heat treatment requirements for maintaining ductility. Ensure proper inert gas shielding during welding to prevent oxygen contamination in the heat-affected zone.
Q: Will the material withstand seawater desalination conditions?
A: Absolutely. The discs show virtually no pitting or crevice corrosion in seawater temperatures up to 80°C. This makes them ideal for reverse osmosis system components and heat exchanger applications in marine environments.
Contact Us for Custom Solutions
Contact Baoji INT Medical Titanium at export@tiint.com for Gr 1 Titanium Disc technical datasheets, quotations, and engineering support tailored to your project requirements.
