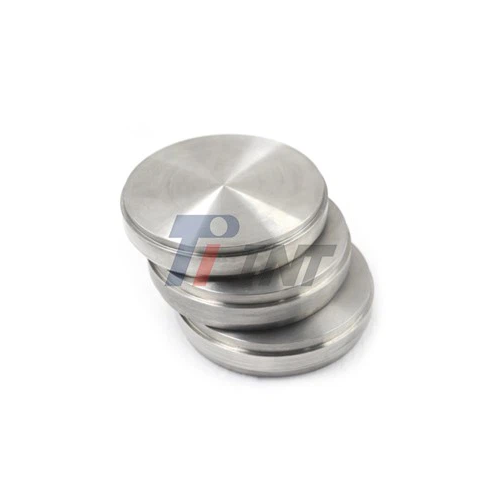

Gr5 Titanium Disc

Lightweight and extremely durable material.
Corrosion-resistant for long-term use.
High strength-to-weight ratio for flexibility.
Excellent fatigue resistance for durability.
Customizable to suit needs.
All products have passed ISO9001:2015, ISO13485:2016, EU CE safety certification
Product Description

Gr5 Titanium Disc: Premium Grade 5 Ti-6Al-4V Disc Solutions for Precision Engineering Applications

Baoji INT Medical Titanium Co., Ltd. manufactures high-performance Gr5 Titanium Disc products engineered from Ti-6Al-4V alloy (Grade 5), the most widely adopted titanium alloy in advanced industrial sectors. Our discs deliver exceptional mechanical properties with tensile strength exceeding 895 MPa and yield strength above 828 MPa, combined with outstanding corrosion resistance and biocompatibility. Established in 2003 with over 30 years of titanium expertise, INT holds ISO9001:2015, ISO13485:2016, and EU CE certifications, ensuring every product meets stringent international quality standards for medical implants, aerospace components, and precision manufacturing applications.

Why Choose Gr5 Titanium Disc for Your Critical Applications?

Grade 5 titanium discs handle basic technical difficulties that cannot be efficiently solved with standard materials. They want assembly components that can survive harsh settings without adding extra mass.

Our solution fills the performance gap between pure titanium and heavier steel alternatives. The alloy composition ( 6 % Aluminium , 4 % Vanadium ) increases the strength , yet keeps the corrosion resistance of titanium . You get a material with a higher strength-to-weight ratio than most stainless steels.

These discs can even operate at temperatures as high as 400°C. They are resistant to chloride stress corrosion cracking in marine environments and retain structural integrity under cyclic loading. Your mission-critical components are reliable throughout their long service life.

Gr5 Titanium Disc

Technical Specifications of Our Gr5 Titanium Discs

Property

Specification

Grade Designation

Ti-6Al-4V (Grade 5)

Aluminum Content

5.5% - 6.75%

Vanadium Content

3.5% - 4.5%

Tensile Strength

≥930 MPa

Yield Strength

≥860 MPa

Elongation

≥10%

Maximum Iron Content

0.30%

Maximum Oxygen Content

0.20%

Operating Temperature

Up to 400°C

Density

4.43 g/cm³

These specifications ensure you receive consistent material performance across batches. Our quality control procedures verify chemical composition and mechanical properties for every production run.

Diverse Industrial Applications

Aerospace & Aviation Components

Our discs are relied on in the production of compressor blades, turbine parts and structural fasteners. The material does not fail to fatigue even under severe temperature cycling and cyclic stress. Aircraft manufacturers use grade 5 titanium for landing gear components, as the weight savings can directly translate to fuel efficiency.

Manufacture of Medical Devices

Our product is used by surgical implant makers to produce orthopaedic components like joint replacements and bone fixation devices. The material is biocompatible leading to osseointegration and its strength is suitable for load bearing applications The disc’s machinability is advantageous for dental implant manufacturers who use it to create accurate anatomical shapes.

Energy Sector Solutions

Materials for oil and gas activities must be resistant to sulphide stress corrosion cracking. Our discs are used as the raw material for downhole drilling equipment and valve components. These discs are used by the automobile racing industry machine to link rods and valve retainers, so as to reduce reciprocating mass and maximise engine performance.

Superior Processing Capabilities

INT's advanced manufacturing infrastructure supports your complex customization requirements. Our precision die forging systems produce discs with tight dimensional tolerances.

You receive products manufactured through controlled thermal processing cycles. Annealing treatments optimize mechanical properties and relieve internal stresses. Our turning and milling capabilities transform raw discs into finished components meeting your exact specifications.

Each Gr5 Titanium Disc undergoes surface preparation appropriate for your application. Options include acid pickling for enhanced corrosion resistance or centerless grinding for precise dimensional accuracy. We maintain strict process controls to prevent surface contamination.

Quality Assurance You Can Trust

Material traceability is included with each shipment. You obtain Material Test Certificates (MTC) to EN 10204 3.1 standard showing chemical composition and mechanical test results.

We are ISO13485:2016 certified and committed to medical device quality management. The production operations are carried out in validated methods with documented quality check points. Inspection techniques are used to evaluate dimensional correctness, surface quality, and material qualities.

Third party lab testing supports our internal quality results. We have calibrated testing equipment for tensile testing, hardness testing and metallographic examinations.

Customization Services

Standard disc diameters range between 50mm and 600mm and the thickness possibilities are from 3mm to 100mm. Larger sizes for particular applications are available on request.

The surface finish requirement may be specified from rough-machined to polished state. Available in square cut, bevelled or radiused edge preparation. Special tolerance requirements are provided for precise fit applications.

Our technical staff works with you to optimise disc parameters to match your manufacturing processes. If you want blanks for future machining or near-net-shape forgings, we may adapt the manufacturing to minimise your downstream processing costs.

Machining and Fabrication Considerations

Grade 5 titanium is a whole different kettle of fish to work with. Minimise work hardening by using sharp carbide tools with positive rake angles. Use slow cutting rates and plenty of coolant to control heat build-up.

Waterjet cutting gives crisp edges on narrow discs without heat-affected zones. Argon shielding is required to prevent alpha case production on the cut surfaces Laser Cutting Make sure to surround the whole weld joint with inert gas from both sides when welding to avoid contamination from the atmosphere.

The material will spring back during forming operations . Minimum bend radius 4-5 times the material thickness. Hot shaping often works better for complicated shapes.

Packaging and Logistics

We secure your investment with meticulous packaging. Surface damage in transit is avoided by wrapping each disc individually. For overseas exports, palletised packages contain moisture barriers and safe strapping.

Each consignment is accompanied by business invoices, packing lists and material certificates. To ensure safe transit to your location, we work with freight forwarders who are experts in shipping titanium items.

Product Technology and Production Process

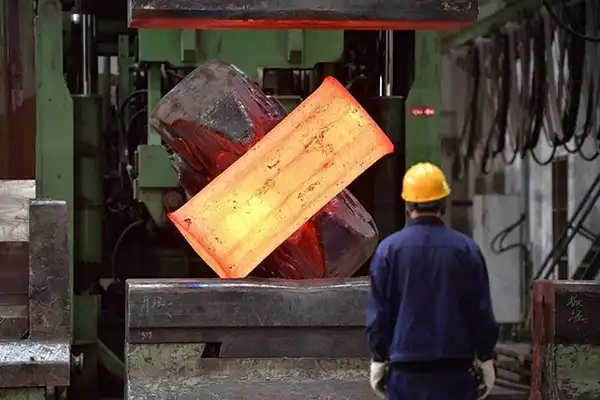

Hot rolling and forging techniques that enhance the mechanical properties, ensuring superior strength and toughness.
Ultrasonic testing to detect flaws and ensure 100% reliability.
Strict quality control at every stage of production, meeting and exceeding international medical standards like ISO9001:2015 and ISO13485:2016.
Titanium raw materials Smelting forging cutting
extrusion Straightening Processing Finished Product

Industries Catered

Our products are widely used in medical, automotive, aerospace, chemical, scientific and technological manufacturing and electronic information industries.

Titanium for the medical industry Titanium for the automotive industry Titanium for the aerospace industry Titanium for the chemical industry Titanium for the technology manufacturing industry Titanium for the electronics industry

Our Factory - A Legacy of Excellence

Founded in 2003 by titanium industry expert Mr. Zhan Wenge, Baoji INT Medical Titanium Co., Ltd. has grown into a benchmark enterprise in the R&D and production of medical titanium materials. With more than 30 years of experience, INT is deeply invested in the development of high-quality titanium for the medical sector. We provide a full range of titanium products, including pure titanium, Ti6Al4V ELI titanium, and custom titanium alloy forgings.

Inductance meter Polishing Machine Chemical milling machine Laser cutting machine
Precision forging Three coordinates Vacuum annealing furnace Quality inspection equipment

Packaging and Transportation

package 1 package 2 package 3

Why Choose Us?

Choosing Baoji INT Medical Titanium Co., Ltd. means partnering with a trusted leader in the medical titanium industry.

Here’s why:

Proven Expertise: Over 30 years of experience in medical titanium production.
Advanced Technology: State-of-the-art production lines and equipment.
International Certifications: ISO9001:2015, ISO13485:2016, and EU CE certifications.
Comprehensive Support: We provide ongoing technical support, ensuring our products fit seamlessly into your manufacturing process.
Customer-Centric Approach: Committed to delivering high-quality products on time, every time.
For inquiries or orders, please contact us at export@tiint.com. We look forward to partnering with you for your medical titanium needs.

ceitificates

certificate

our history

OEM Service

At Baoji INT Medical Titanium Co., Ltd., we provide tailored solutions to meet specific needs. Our OEM services allow customers to customize the dimensions, surface finish, and other specifications of Gr5 Titanium Disc, ensuring that the product fits seamlessly into your production process. Contact us for a custom solution that aligns with your project requirements.

FAQ

Q: What makes Gr5 superior to commercially pure titanium grades?

A: Grade 5 delivers approximately three times the tensile strength of Grade 2 pure titanium. You gain load-bearing capacity without sacrificing corrosion resistance. The alloy composition enables use in structural applications where pure titanium would deform under stress.

Q: Can your discs be anodized for color coding?

A: Absolutely. Our Gr5 material accepts Type II and Type III anodizing treatments. The stable oxide layer provides consistent color formation useful for medical device sizing or aesthetic applications. Anodizing also enhances surface hardness and wear resistance.

Q: How do you prevent hydrogen embrittlement during processing?

A: We employ vacuum degassing procedures to maintain hydrogen content below 150 ppm. Controlled pickling processes minimize hydrogen absorption during surface treatment. Our quality certificates document hydrogen content verification through laboratory analysis.

Q: Are your discs suitable for cryogenic applications?

A: Grade 5 titanium maintains mechanical properties at low temperatures better than many alloys. However, fracture toughness decreases at cryogenic temperatures. For applications below -200°C, we recommend discussing your specific requirements with our technical team to ensure suitability.

Q: What lead times should I expect for custom specifications?

A: Standard dimension discs typically ship within two weeks of order confirmation. Custom sizes requiring special forging or extensive machining may require 4-6 weeks. We provide detailed production schedules upon order placement to support your project planning.

Contact Us for Your Gr5 Titanium Disc Requirements

Contact us at export@tiint.com to request samples, technical documentation, or pricing information. Let INT's three decades of titanium expertise support your next project with reliable Gr5 Titanium Disc solutions.
