Do GR2 titanium plates have good machinability?

When purchasing managers and R&D engineers evaluate materials for medical device manufacturing, machinability becomes a decisive factor affecting production costs and delivery timelines. GR2 titanium plates demonstrate favorable machinability characteristics compared to higher-grade titanium alloys, making them a practical choice for surgical instruments, implant components, and dental applications. The same machining principles apply to Gr2 Titanium Medical Bar, which shares identical chemical composition and mechanical properties. While GR2 requires specific tooling and cutting parameters due to titanium's unique thermal properties, its lower hardness and excellent ductility allow for efficient material removal rates without excessive tool wear, particularly when proper cooling strategies are implemented.

Understanding GR2 Titanium Plates and Their Machinability

Chemical Composition and Mechanical Properties

GR2 titanium is commercially pure titanium that has intermediate elements that are managed and have a direct effect on how it works when it is machined. As required by ASTM B265 and ASME SB-265, the material has an oxygen content of no more than 0.25% and an iron content of less than 0.30%. The tensile strength is at least 345 MPa, the yield strength is at least 275 MPa, and the elongation is at least 20%. The metal's structure isn't as hard as alloy types like GR5 (Ti-6Al-4V), which means that it needs less cutting force when sawing, turning, and drilling. Working with medical device makers for 30 years has taught us that GR2 plates are great for parts that need to be biocompatible and have exact dimensions.

Biocompatibility and Corrosion Resistance Impact

When exposed to air, a steady titanium dioxide (TiO2) film forms on its own. This film is completely resistant to weathering in seawater up to 315°C and also very resistant to wet chlorine and organic acids. This passive oxide layer stays in place during machining as long as the right coolant chemistry is used. This keeps the surface from getting dirty, which could lower the quality of the implant. Medical device makers can use GR2 because it is non-magnetic and completely biocompatible, so they don't have to worry about how the material might react with tissue during the manufacturing process. The low thermal conductivity of 16.4 W/m-K means that care needs to be taken when cutting, as heat builds up at the point where the tool meets the workpiece instead of spreading out through the material.

Microstructure and Thermal Conductivity Considerations

The hexagonal close-packed crystal structure and low thermal conductivity of GR2 titanium make it difficult to machine in ways that procurement teams need to understand. The heat that is made when cutting stays in one place, which could lead to work hardening in the cutting zone. Manufacturing engineers know that these problems can be fixed by keeping the cutting edges sharp and using aggressive systems for delivering coolant.

Because the material tends to stick to cutting tools, they need to have certain shapes with positive rake angles and large relief angles to make it easier for chips to escape. At Baoji INT Medical Titanium, our quality control methods make sure that the microstructure is the same across all plate thicknesses. This gets rid of any differences that could make cutting less predictable between production runs.

Machinability Compared: GR2 Titanium vs Other Grades and Materials

GR2 vs GR5 Titanium Alloy

GR5 titanium alloy (Ti-6Al-4V) is stronger than other alloys, with tensile values above 895 MPa. However, this performance benefit comes at the cost of being less efficient when it comes to cutting compared to Gr2 Titanium Medical Bar. The aluminium and vanadium alloying elements make the metal much harder, so tools need to be stronger and cutting speeds need to be slower. When purchasing managers look at cost-per-part metrics, they often find that GR2 plates make tool life longer and remove material 30–40% faster.

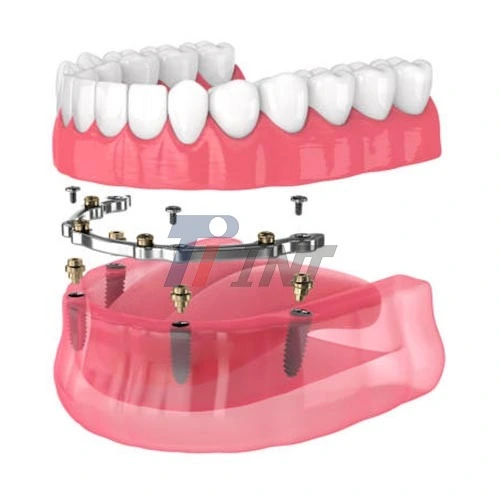

While GR5 is still needed for high-stress orthopaedic implants like hip stems, GR2 works great for surgery tools, dental implants, and parts that don't have to hold as much weight. This is because it's easier to machine and doesn't have to be as strong. Our output data constantly shows that GR2 keeps the quality of the surface finish higher at higher feed rates than GR5, which means that fewer secondary finishing processes are needed.

GR2 Titanium vs Stainless Steel

A lot of companies that make medical devices are switching from 316L stainless steel to GR2 titanium to make their products lighter and more resistant to corrosion. When it comes to cutting, GR2 is different from other materials with similar hardness levels. Because stainless steel is a better thermal conductor than titanium, heat can move away from the cutting area while titanium concentrates heat.

Carbide tools with the right finishes work well with both materials, but titanium needs more care in how the water gets to the workpiece. Because GR2 has a lower density (4.51 g/cm³), it is about 45% lighter than steel. This means that less material mass fights cutting forces, which could make tools last longer in some situations. Supply chain managers like that GR2 takes away worries about nickel sensitivity in internal devices while still allowing the same amount of work to be done as with austenitic steel grades once the right parameters are set.

Best Practices for Machining GR2 Titanium Plates

Recommended Tooling and Cutting Parameters

For GR2 titanium plates to work best for machining, you need to be very careful when choosing the tools and the operating conditions. Wear-resistance is needed for long production runs, so carbide inserts with PVD or CVD coatings that contain aluminium oxide or titanium aluminium nitride are used. To keep cutting edges sharp, we suggest tool shapes with positive rake angles of 5 to 15 degrees and relief angles of 10 to 12 degrees. This will cut down on friction and heat production.

For roughing, cutting speeds are usually between 50 and 80 surface feet per minute, and for milling, feed rates are between 0.004 and .008 inches per tooth. These cautious settings keep the rate of material removal at a good level while preventing work hardening. The depth of cut options depends on how rigid the machine is, but for roughing passes, depths between 0.100 and 0.150 inches work well. Our technical support team has helped many companies that make medical devices set up approved machining processes that make sure the quality of thousands of parts is always the same.

Cooling and Lubrication Strategies

GR2 machining operations for Gr2 Titanium Medical Bar that go well and ones that don't depend on good thermal management. High-pressure cooling delivery systems that aim fluid lines directly at the cutting zone help get rid of heat that builds up in that area. Synthetic coolants that dissolve in water or semi-synthetic emulsions at amounts of 5 to 8 percent work well for lubrication and cooling.

Through-tool coolant distribution, which floods the cutting surface from inside the tool body, can help with some accuracy tasks. Manufacturing engineers should make sure that the flow of coolant doesn't get interrupted, because thermal cycling speeds up tool wear and can cause microcracks in the material of the workpiece. Misting systems and minimum quantity lubrication methods need to be carefully tested because not enough cooling can cause work hardening that gets worse with each use.

Addressing Work Hardening and Surface Defects

Work hardening is the biggest problem when working with GR2 titanium plates. It happens when the material in the cutting zone deforms plastically without enough chips being removed. This effect makes surface layers that get harder over time, which speeds up tool wear and could lead to errors in measurements. This problem can be avoided by keeping the cutting edges sharp so that the material shears cleanly instead of spilling. When work hardening does happen, slowing down the feed rates makes the problem worse by letting the tool stay and polish instead of cut.

Production managers have found that work hardening doesn't start when aggressive feeds are kept up with sharp tools. Surface flaws like galling, built-up edge formation, and microcracking are usually caused by not cooling enough or using old, worn-out tools. Our quality assurance procedures stress regular tool inspections and strict adherence to validated cutting parameters to get rid of these flaws before they affect the specs of the part.

Procurement Considerations for GR2 Titanium Medical Bars and Plates

When looking for a good supplier, you need to look at more than just unit price. Assessing a source starts with making sure they follow the rules for getting certified. We have ISO 9001:2015 certification for our quality management system, ISO 13485:2016 certification for medical devices, and EU CE safety approvals. This makes sure that every plate and bar meets the strict standards set by the government. Optical emission spectroscopy and inert gas fusion tests show that the hydrogen content stays below 0.015 percent and the oxygen levels stay within the acceptable range.

These are important factors that keep the brittle alpha case formation from happening, which affects the ability to machine the material. Tensile testing and guided bend tests up to 105 degrees are used to make sure the material is mechanically sound and that it won't crack during the cold forming process. Ultrasonic testing is done on heavy gauge plates that are going to be used in pressure vessels according to AMS 2631 Class A1 guidelines to find any internal laminations or inclusions.

Aside from the properties of the material itself, quality assurance also looks at the consistency of the dimensions and the condition of the surface. Purchasing managers should ask for finishes that have been acid-pickled, descaled, and free of iron residue. Surface flaws make setting up machines harder and cause tools to wear out faster. Our factories keep very close tolerances on sizes, and variations in thickness are limited to ±5% or ±0.005mm, depending on the shape of the product. This level of consistency gets rid of the machining allowance uncertainties that raise scrap rates and make planning production harder. Batch-to-batch consistency makes sure that cutting settings that have been tested work on multiple orders, so the process doesn't have to be retested for each delivery.

North American buying teams for Gr2 Titanium Medical Bar have to think about logistics a lot. Lead times depend on how complicated the specifications are and how many items are ordered, but established sources keep enough popular sizes in stock to allow for quick fulfilment. Strategies for ordering in bulk lower the cost per unit while keeping the supply going for high-volume production.

Working with medical device makers all over the US has taught us that reliable delivery dates are just as important as quality materials. When supplies are late, production lines stop, which costs a lot more than any savings from buying when prices are low. The ability to provide technical help sets special sellers apart from commodity vendors. As an extension of our customers' R&D and production processes, our engineering team helps customers choose materials, make the best use of machining parameters, and follow quality control procedures.

Case Studies: Successful Machining Applications of GR2 Titanium Plates

Orthopedic Implant Component Manufacturing

A medium-sized company that makes orthopaedic devices came to us looking for GR2 titanium plates for trauma plating systems. Their old supplier gave them inconsistent material, which made the tool life and surface finish unpredictable. When they switched to our approved GR2 plates that met ASTM B265 standards, they were able to machine things much more efficiently. Using coated carbide tools at 65 surface feet per minute and high-pressure coolant delivery, they set up stable cutting parameters.

Compared to their former material source, the tool life improved by about 35%, and measurements of the surface roughness reliably showed Ra values below 32 microinches without the need for secondary finishing. The devices were approved by the FDA after passing all biocompatibility tests. Their buying manager said that our batch uniformity meant they didn't have to change parameters as often, which made their production process much more efficient.

Dental Instrument Production

A company that makes dental tools needed GR2 titanium plates for surgical curettes and scalers. Titanium is more expensive than stainless steel because it is lighter and doesn't rust. Machining was hard because the shapes were complicated and the cross-sections were thin. Our technology team suggested certain shapes for the tools and came up with ways to cool them down so that the work wouldn't harden in thin parts. The maker used sharp carbide end mills with positive helix angles and through-spindle coolant delivery to set the settings we proposed.

The production yield rate was over 98%, and the parts that were sent back were damaged during shipping rather than having machining flaws. The edges of the instruments stayed sharp even after being sterilised many times, and doctors liked how their hands didn't get tired as quickly during long procedures. This application showed how GR2 can be used to make complex, precise parts where material needs to be removed without causing stress or dimensional distortion.

Conclusion

It is possible to make medical devices out of Gr2 Titanium Medical Bar plates as long as the right tools, cutting settings, and cooling techniques are used. Because it has the right amount of mechanical qualities, biocompatibility, and workability, the material can be used to make surgical tools, oral implants, and orthopaedic parts. Titanium is harder to work with than stainless steel or aluminium, but GR2's fairly pure composition makes it better than harder alloy types like GR5. When procurement teams work with experienced suppliers, those who offer consistent material quality, full certifications, and technical support are a big plus. Knowing how the properties of a material affect how well it can be machined helps makers make the most of their production methods while still meeting the high quality standards needed for medical uses.

FAQ

Q1: How does GR2 titanium compare to GR5 in terms of how easy it is to machine?

A: Because it is not as hard and has less metal in it, GR2 titanium is much easier to work with than GR5 material. In high-load situations, GR5 is stronger than GR2, but GR2 has faster cutting speeds and longer tool life, so it is better when strength standards allow it. Cutting tools last longer when they are used with GR2 than when they are used with GR5, which has aluminium and vanadium in it.

Q2: What kinds of tools work best with GR2 titanium plates?

A: The best performance is achieved with carbide tools that have coats made by physical vapour deposition or chemical vapour deposition. Coatings with aluminium oxide or titanium aluminium nitride make things last longer and cut down on friction where they meet. High-speed steel tools wear out too quickly to be used in production, but they can be used for prototypes or small amounts of work. Tool material isn't as important as having sharp cutting edges. Dull carbide doesn't work as well as sharp high-speed steel.

Q3: Does resistance to rust affect how well cutting works?

A: When the right coolant chemistry is used, the passive oxide layer that forms on GR2 titanium surfaces doesn't have a big effect on the machining. By staying away from coolants that contain chloride, you can stop corrosion that could roughen surfaces between operations. The material's resistance to rust is helpful during storage and handling because it keeps parts from breaking down in the environment, which could make processes more difficult or lower the quality of the implant.

Partner with a Trusted Gr2 Titanium Medical Bar Manufacturer

Baoji INT Medical Titanium Co., Ltd. has been specialising in medical-grade titanium materials since 2003, accumulating over three decades of industry expertise through our founder's leadership. We serve medical device manufacturers throughout the United States with certified GR2 titanium plates and bars engineered for superior machinability and consistent quality. Our ISO 13485:2016 certification and comprehensive quality control processes ensure every product meets ASTM B265 standards with verified chemical composition and mechanical properties.

Whether you need standard specifications or customized dimensions for specialized applications, our technical team provides guidance on material selection, machining parameters, and quality verification. We invite procurement managers, R&D engineers, and production specialists to contact us at export@tiint.com to discuss your specific requirements. Request material samples and technical documentation to evaluate how our Gr2 Titanium Medical Bar supplier capabilities can enhance your manufacturing efficiency and product quality.

References

1. Boyer, R., Welsch, G., and Collings, E.W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International, Materials Park, Ohio.

2. Donachie, Matthew J. (2000). Titanium: A Technical Guide, 2nd Edition. ASM International, Materials Park, Ohio.

3. Ezugwu, E.O. and Wang, Z.M. (1997). Titanium Alloys and Their Machinability: A Review. Journal of Materials Processing Technology, Volume 68, Issue 3.

4. American Society for Testing and Materials (2021). ASTM B265-20a: Standard Specification for Titanium and Titanium Alloy Strip, Sheet, and Plate. ASTM International, West Conshohocken, Pennsylvania.

5. Arrazola, P.J., Garay, A., Iriarte, L.M., et al. (2009). Machinability of Titanium Alloys. Journal of Manufacturing Science and Engineering, Transactions of the ASME, Volume 131.

6. Lutjering, Gerd and Williams, James C. (2007). Titanium, 2nd Edition. Springer-Verlag, Berlin Heidelberg.
