How to repair damaged Gr1 Titanium Bar?

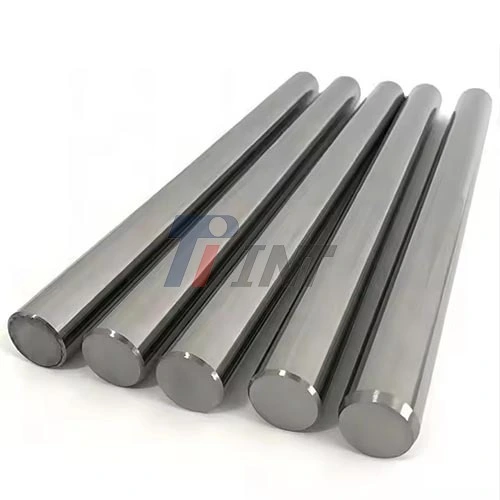

When a Gr1 Titanium Medical Bar sustains damage during fabrication, storage, or initial machining trials, the immediate question becomes: should we repair it or replace it entirely? Repairing damaged Gr1 titanium bars is feasible under specific conditions, but success depends on understanding the damage type, selecting appropriate restoration methods, and conducting rigorous post-repair validation. Surface defects like shallow scratches, minor contamination, or localized oxidation can often be remedied through mechanical polishing and chemical passivation. Structural issues such as deep gouges, dimensional deviations beyond tolerance, or compromised microstructural integrity typically necessitate replacement to maintain compliance with ISO 13485 and FDA material traceability standards essential for medical device manufacturing.

Understanding the Nature of Damage in Gr1 Titanium Bars

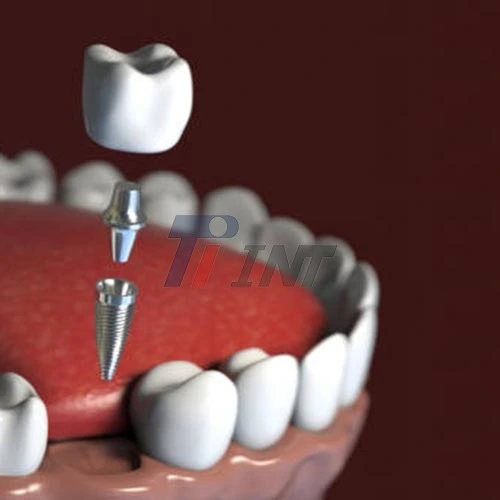

Gr1 Titanium Medical Bars are in a special place in the order of medical products. Because these bars have less than 0.18% oxygen and less than 0.20% iron, they are very flexible and easy to shape. This makes them perfect for making complicated surgery tools and implantable parts. But because of their high level of purity, they can be damaged in certain ways that buying managers and production engineers need to be aware of.

Common Damage Types and Their Origins

When we check incoming materials, surface scratches are the most common problem we see. These usually happen because of bad handling during transport or not enough safety measures in storage facilities. Even if the scratches are only on the surface, they can act as stress concentrators during later cold forming operations, which could cause the material to fail completely during bending or deep drawing.

Damage caused by contamination is a more sneaky threat. When titanium is exposed to metal tools or abrasive bits that contain iron, these can embed foreign elements into the surface. This contamination makes localized galvanic cells that speed up rusting in physiological settings. This directly affects the Gr1 Titanium Medical Bar's biocompatibility, which is what makes it good for medical uses. We have records of situations where iron contamination that wasn't noticed caused batches to be thrown out during the final ultrasonic testing required by AMS 2631 Class A standards.

Mechanical damage usually happens when the machine is being set up or when the material's yield strength is exceeded during test cuts. Gr1 Titanium Medical Bar stock doesn't have as much tensile strength as higher-strength titanium alloys like Ti6Al4V ELI. This means that when too much force is applied, it deforms instead of breaking. This leads to errors in measurements that might be too big or too small for the h9 or h11 tolerances needed for automatic CNC processes.

How Gr1 Responds Differently to Damage?

The alpha-beta structure in Gr5 metals is different from the single-phase alpha microstructure of Gr1 Titanium Medical Bar in how it acts. When Gr1 is damaged, it doesn't change into something else that strain-hardens the same way. This means that localized plastic deformation spreads more evenly across the material. This can be good for repair, but it also means that figuring out how bad the damage is takes a close look at the material's microstructure to find any grain distortion that could affect future shaping steps.

Analyzing the Challenges of Repairing Gr1 Titanium Bars

To get a Gr1 Titanium Medical Bar back to how it was originally made, you need more than just metalworking skills. The chemical makeup of the material puts purity over strength, which means that there is a small window of time for repairs that won't damage its medical-grade properties.

Material Property Constraints

Gr1 is very resistant to rust because when it comes in contact with oxygen, it can form a steady, self-healing oxide layer. Any method of repair that uses heat must be carefully managed to avoid alpha case formation, which is a thin, brittle layer of oxygen-rich material that forms when titanium heats up above 600°C in normal air. We've seen production runs where repairs were tried without inert gas shielding, which led to alpha case depths greater than 0.05mm. This meant the whole bar couldn't be used for tasks that needed to be bent at 105-degree angles around a 1T mandrel.

Gr1 is also hard to work with because of its tensile and yield properties. With a yield strength of 138 to 310 MPa and an elongation of more than 24%, any leftover stress caused by repair can move these values outside of what is allowed. In aerospace uses, small differences in strength might be okay for structural fixes, but when making medical devices, everything has to be exact so that the paperwork for tracking the products stays legal all the way through the supply chain.

Limitations of Traditional Repair Methods

When it comes to welding Gr1 bars that are meant to be used in medicine, standard methods have a lot of problems. The single-phase structure of the material makes it easy to weld, but creating and keeping the necessary inert environment (usually argon purity >99.995%) is harder and costs more. More importantly, the Heat Affected Zone made during fusion welding changes the carefully controlled grain structure set up during the initial annealing. This could create areas that are less flexible and will fail during subsequent shaping operations.

Physical vapor deposition and thermal spraying are two ways to treat surfaces that add foreign materials that could make biocompatibility ratings less reliable. Even small changes in the makeup can lead to long revalidation processes with governing bodies. This means that fixing something is often not worth the money compared to replacing it. This is a very important thing to think about when buying something, especially for R&D teams that are working with tight development timelines and limited funds.

Proven Methods for Repairing Damaged Gr1 Titanium Bars

Even with the problems listed, there are some types of damage that can be fixed quickly and safely using specific methods that protect the purity of the Gr1 Titanium Medical Bar and follow all the rules. Through our work with several medical device manufacturing partners, we've found a number of approaches that are both technically possible and meet quality assurance standards.

Mechanical Surface Restoration

Most of the time, precision grinding and polishing sequences can fix surface flaws that are less than 0.5 mm deep. Ultrasonic thickness scales are used to measure the depth of the damage at the start of the process to make sure that enough material is left over after removal. Then, we use silicon carbide abrasives that go from 120 grit to 600 grit, followed by non-woven abrasive pads, to get surface finishes that are less than 0.8 Ra micrometres.

When doing mechanical restoration, it's important to keep the removal of material even so that you don't end up with spots of thin material that might not pass dimensional inspection. To make sure consistency, skilled operators use pneumatic tools with constant pressure instead of manual methods. After rough work, chemical passivation in a solution of nitric acid and hydrofluoric acid (usually 20–30% HNO3 and 2–4% HF) gets rid of any buried particles and returns the protective oxide layer that is needed for rust resistance.

Advanced Thermal Treatment for Stress Relief

Controlled annealing processes are good for bars that still have stress from bad treatment. We've come up with protocols that involve heating to 650–700°C in vacuum furnaces (with pressure below 10^-5 Torr) and figuring out soak times based on the thickness of the section—usually one hour for every 25 mm of diameter. Slow cooling rates below 100°C per hour keep the material from going through thermal shock and help it reach an even alpha grain structure that meets the standards of ASTM E112 size 7 or smaller.

Verification after annealing includes both mechanical testing and microstructural analysis. Tensile samples cut from treated bars must show elongation values that are the same as those for fresh material. This proves that the heating cycle eased stress without losing ductility. This method works especially well for bars that have changed sizes because of mistakes made during machining, because the stress release often lets the material partly return to its original shape.

Precision Welding for Localized Defects

When the cost of replacement is too high, localized welding repair may be the only way to fix deep gouges or isolated damage zones. To be successful, you have to follow strict rules that were made for medical apps. We use automated TIG welding systems that can be programmed to work with 50–80 amps, 10–12 volts, 150–200 mm/min travel speeds, and commercial purity (CP) titanium filler wire that matches the material's composition.

During the whole process, the oxygen level in the welding chamber must stay below 50 ppm, and the trailing shields must extend at least 150 mm beyond the arc zone. As part of the preparation for welding, the surface is degreased with a solvent and then cleaned mechanically with stainless steel wire brushes made just for titanium work. Visual inspection, dye penetrant tests according to ASTM E1417, and x-ray proof to find porosity or incomplete fusion are all parts of the post-weld inspection.

After the weld fix is done, the damaged area goes through a heat treatment similar to the melting process we talked about earlier. This step evens out the microstructure between the base metal and the weld zone, which is important for the next steps in the making process because it restores the flexibility. Mechanical testing of the fix area, such as bend tests at the required 1T radius, is the last step in making sure that the repair meets the original material requirements.

Comparison of Gr1 Titanium Repair Solutions with Alternative Materials

When purchasing managers look at how much it will cost to fix something, they need to put Gr1 Titanium Medical Bars in the context of other medical-grade metals. This comparison sheds light on situations where investing in repairs makes strategic sense and situations where something needs to be replaced right away.

Cost-Benefit Analysis: Repair Versus Replacement

Due to the difficulty of making and strict purity standards, Gr1 titanium bars are very expensive. Medical-grade bars with full traceability paperwork cost between $45 and $75 per kilogram on the market right now, based on the diameter and level of approval. Minor surface damage repairs usually cost $200 to $400 per bar, which includes inspection, processing, and re-certification testing. This is about 15 to 25 percent of the cost of a new bar with a width of 20 to 50 mm.

The estimate changes a lot when there is damage to the structure that needs welding. Repair costs can be close to 60–80% of the value of a new item when you consider the cost of specialized tools, setting up an inert atmosphere, post-weld heat treatment, and full NDT proof. At this point, most procurement teams choose to replace the item, unless they are dealing with custom sizes that make it take a long time to make new materials.

316L and other types of stainless steel are cheaper to work with, but they don't have the biocompatibility and corrosion resistance that make titanium the best choice for implantable devices. Repair methods for stainless steel are more developed and less affected by the environment, which makes fixing small damages more cost-effective. But device makers who stick to titanium because it works better don't find it useful to compare different materials when deciding if a repair is possible.

Lead Time Considerations in Supply Chain Management

Standard bar stock in common diameters (12mm, 16mm, and 25mm) usually ships within two to three weeks from reputable suppliers who keep stock on hand. When material has to be treated from an ingot through multiple reduction passes and annealing processes, lead times can go up to 6 to 8 weeks if the dimensions or lengths are specific.

Surface damage repairs usually take between 5 and 7 business days, which includes receiving, processing, and final testing to make sure the work is done right. This advantage in terms of time often makes the difference for R&D teams working with tight development plans or production managers who find out they don't have enough materials at the last minute. If you can save partially processed bars that got damaged during the first round of grinding tests, you can avoid project delays that would affect the whole production schedule.

Best Practices and Preventative Measures for Gr1 Titanium Bar Maintenance

Reducing the amount of damage that happens is much more valuable than making repairs more complex. After 30 years of working with companies that make medical devices, we've seen consistent patterns in how top companies protect the integrity of their Gr1 Titanium Medical Bars throughout their supply chains.

Handling and Storage Protocols

Bars should stay in their original safe package until they are ready to be used. The things we ship are kept safe from moisture and contamination during transport in heat-sealed polyethylene sleeves with desiccant packets. Temperatures must stay between 15°C and 25°C and relative humidity must be less than 50% in storage areas to stop condensation that could speed up surface oxidation.

Cross-contamination from ferrous materials can't happen with storage racks made of plastic-coated steel or aluminum. Instead of touching metal to metal, bars should rest in cushion cradles, with enough space between them to allow for inspection. Using a first-in, first-out rotation method keeps things from being stored for longer than the suggested amounts of time. For bars with pickled surfaces, that time is 24 months, and for bars with protective coatings, it's 36 months.

Material handlers need training that is specific to titanium's properties. Titanium is not as hard as steel; its surface is relatively soft (Brinell hardness of about 120–140 for Gr1). Harder materials can easily leave marks on it. We suggest using pulling slings made of nylon or aluminum instead of chain hoists, which can damage surfaces while they are being loaded.

Optimized Machining Parameters

When CNC coders work with Gr1 material, they should use conservative cutting settings that put tool life and surface finish ahead of fast material removal rates. When you use sharp carbide tools with positive rake angles and cutting speeds between 30 and 50 meters per minute, the work hardening in the chip formation zone is kept to a minimum. Enough cooling flow—we suggest water-soluble emulsions at an 8–10% concentration given at 15–20 litres per minute—keeps heat from building up and changing the surface's properties.

When working with medical-grade bars, keeping an eye on tool wear becomes very important. When cutting edges are worn, they produce too much heat and surface stress, which can change the results of later inspections. We recommend tool changes that are 30–40% shorter than those used for regular industrial titanium work. This will ensure uniform surface finishes that meet the Ra 0.8–1.6 micrometre range that is common for medical device parts.

Supplier Partnership for Material Integrity

Working with material suppliers who know how to make medical devices meets an important quality level before the bars come into your facility. Since its start in 2003, Baoji INT Medical Titanium has created procedures for arriving inspections that find problems before they are shipped. Our chemical study using ICP-OES and inert gas fusion methods confirms that the levels of oxygen and iron are within the narrow bands needed for the best formability. This means that the material we're looking at meets ASTM standards on paper but would be hard to work with in real life.

We bought ultrasonic testing equipment that meets AMS 2631 Class A standards and can find internal inclusions or laminations as small as 0.8 mm in diameter. This screening before shipping gets rid of items that might pass the first eye check but not when they are processed by the customer. This keeps production from stopping, which costs our partners a lot of money. Custom cutting services that use abrasive saws with titanium blades make clean, straight ends that cut down on setup time and waste during the first face steps.

Conclusion

To fix broken Gr1 Titanium Medical Bars, you have to weigh the technical feasibility against the costs and the need to follow the rules. When material lead times threaten project schedules, it's clear why to fix surface damage that can be fixed by mechanical polishing and chemical passivation. More serious damage, like structural loss or measurement deviation, usually calls for replacement, unless getting new materials takes too long because of specific requirements. In the end, the decision framework is based on how bad the damage is, how much it will cost to fix compared to how much it would cost to replace, and how important it is to keep the traceability documentation for medical device applications intact. Preventative measures, like following the right way to handle something and using the best machining parameters, are more valuable because they reduce the amount of damage that happens. This lets manufacturing teams focus on making things more efficiently instead of fixing damaged materials.

FAQ

Q1: Can repaired Gr1 titanium bars maintain medical device biocompatibility certification?

A: Biocompatibility approval can be kept on Gr1 Titanium Medical Bars that have been fixed as long as the repair process doesn't add any foreign materials or change the surface chemistry. Most of the time, mechanical polishing followed by acid passivation keeps the original certification status because they get rid of damaged material instead of adding contaminants. Welded fixes need more thorough revalidation, which includes cytotoxicity testing according to ISO 10993-5 standards. This is because the heating and adding the filler metal make new areas that need to be checked by a third party. Most manufacturers think that the costs of repair documentation are pretty close to the costs of new material certification, which makes repair less appealing for implantable device uses.

Q2: How does Gr1 chemical composition affect repair success rates?

A: The low amount of intermediate elements that define Gr1 specifications—especially the highest oxygen limit of 0.18%—has a direct effect on how well repairs work. This amount of purity keeps the material's flexibility, which is important for cold forming, but it also makes it weak enough that it won't break during rough repair work. When you use heat above 600°C to fix something, you run the risk of oxygen absorption, which would change the composition to meet Gr2 standards. This would change the mechanical qualities and make the original material approvals useless. When fixes are done correctly, they stay within the process windows that keep the interstitial element profile as supplied, which is checked by LECO ONH analysis.

Partner with a Trusted Gr1 Titanium Medical Bar Manufacturer for Quality Assurance

Baoji INT Medical Titanium Co., Ltd. takes away the worry of repairs by strictly controlling quality from the ingot to the final inspection. Our production methods are approved by ISO 13485:2016, and the Gr1 Titanium Medical Bar items we make meet ASTM B348 and AMS 4928 standards and come with full proof of how the materials were sourced. Since our company was founded in 2003 by Mr. Zhan Wenge, we've sold Gr1 bars to medical device makers all over the world that always pass the first test without any problems. Our expert team can help you choose the right materials, set the right settings for machining, and handle things in a way that keeps damage from happening. We are a supplier that has been working with the medical device industry for over twenty years. To help you meet your production schedules, we offer custom diameter cutting, precision tolerance grinding, and fast delivery. Email our team at export@tiint.com to talk about your particular needs and find out how our focus on quality saves your manufacturing efficiency.
