Why Is Grade 5 Titanium Popular for Medical Applications?

Grade 5 titanium, or Ti-6Al-4V, has become the material of choice across medical device manufacturing because it uniquely combines high mechanical strength, proven biocompatibility, and long-term corrosion stability. Contract manufacturers sourcing feedstock for orthopedic implants, spinal fixation components, and precision instrument blanks consistently specify this alloy. Among the available product forms, Gr5 titanium straight wire stands out for its dimensional consistency and machinability, qualities that directly protect downstream yield rates and reduce scrap in laser cutting, CNC turning, and etching operations.

Understanding Grade 5 Titanium and Its Unique Properties

Ti-6Al-4V is a titanium alloy in the alpha-beta family. Its normal make-up is about 90% titanium, 6% aluminum, and 4% vanadium. This creates a two-phase microstructure that has a tensile strength of over 895 MPa while still having a density of only 4.43 g/cm³. Because of these factors, the metal is about 45% lighter than surgical-grade stainless steel while still being able to hold the same amount of weight.

How It Differs from Grade 2 Titanium

Commercially pure Grade 2 titanium is very resistant to rust but not very strong (its tensile strength is usually around 345 MPa). That gap gets a lot smaller in grade 5. Gr5 titanium straight wire can handle cyclically stressed environments like bone screws, fixation pins, and joint stem blanks without fatigue-induced fracture over a clinical service life that can last more than ten years. Grade 2 is better for thin-wall tubing or non-load-bearing enclosures.

The Manufacturing Path to Precision Straight Wire

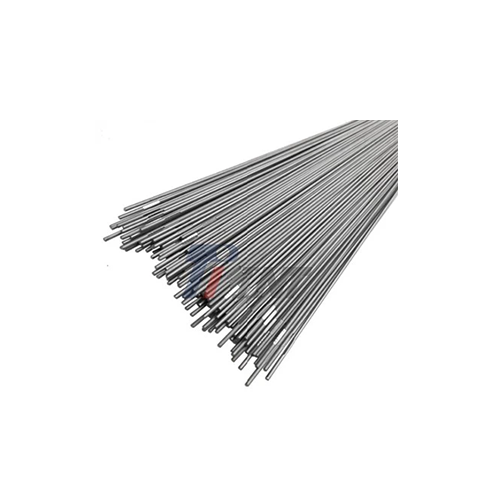

Hot rolling, drawing through increasingly smaller dies multiple times, vacuum annealing to remove any remaining stress, and precise mechanical straightening are all steps used to make medical-grade Ti-6Al-4V wire. Gr5 titanium straight wire is produced through these same foundational processes, but the step of bending gets rid of coil memory, which means that the camber variation is less than 1 mm per meter. This geometry accuracy isn't just for looks. Tool chatter and die damage are caused by leftover curves in Swiss-style CNC bar feeders and automatic heading machines. Straight wire solves that right away.

Key Benefits of Using Grade 5 Titanium Straight Wire in Medical Applications

When buying experts look at titanium wire for making medical parts, they compare how well the material works with how much it costs to make the parts. Both thresholds are always cleared by Ti-6Al-4V wire. Because Gr5 titanium straight wire performs better in these main ways, it is a preferred feedstock in both CMO and CDMO settings:

• Lightweight and load-bearing: The metal has a density of 4.43 g/cm³ and a tensile strength of ≥895 MPa, which means it can hold a lot of weight without losing its structural integrity. This is very important for long-term orthopedic and spinal uses where patient comfort depends on how well the material works.
• Corrosion stability in biological fluids: Titanium makes an inactive TiO2 oxide layer that is resistant to chloride-rich body environments. Galvanic or crevice rust can happen over time in stainless steel, but Grade 5 wire stays the same size and chemically stable throughout the whole implant period.
• Fatigue resistance under cyclic loading: In clinical use, orthopedic fastening parts go through millions of mechanical cycles. Ti-6Al-4V's alpha-beta microstructure gives it a high wear limit compared to its ultimate strength. This makes it a good material for K-wires, bone screws, and trauma pins that are put through repeated bodily stress.
• Biocompatibility with human tissue: The alloy is non-magnetic and non-allergenic, meeting the biocompatibility requirements of ISO 10993 and allowing MRI-safe implant designs that aren't possible with stainless steel alternatives.

These traits have a direct effect on the economics of manufacturing. More consistent raw materials mean fewer mistakes in the middle of a batch during precision etching or CNC milling. Gr5 titanium straight wire directly supports that reliability. This cuts down on repair hours and keeps delivery promises to brand clients.

Comparing Grade 5 Titanium Straight Wire to Other Materials

When medical OEMs choose materials, they have to make trade-offs that affect both the performance of the device and the cost of making it. Key differences are summed up in the table below:

Where Grade 5 Holds a Decisive Edge

Stainless steel is still a cost-effective choice for non-implantable instrument parts, but its higher density and tendency to leak ions make it unsuitable for many long-term implant requirements. Nitinol's superelastic nature is useful for stents and guidewires, but some regulatory systems require more biocompatibility testing because it contains nickel. Grade 4 CP titanium is good for lower-strength uses, but it can't meet the structural needs of load-bearing orthopedic forms. In Gr5 titanium straight wire, the levels of strength, weight, and biological inertness all need to meet clinical and regulatory standards at the same time.

Applications of Grade 5 Titanium Straight Wire in the Medical Industry

Orthopedic and Trauma Fixation Components

Straight Ti-6Al-4V wire is the main material used to make Kirschner wires, fixing pins, and bone screw blanks. Its modulus of elasticity, which is about 114 GPa, is closer to that of cortical bone than steel's, which is 200 GPa. This means that it doesn't protect against stress as well, which can lead to bone loss around implants over time.

Spinal and Dental Applications

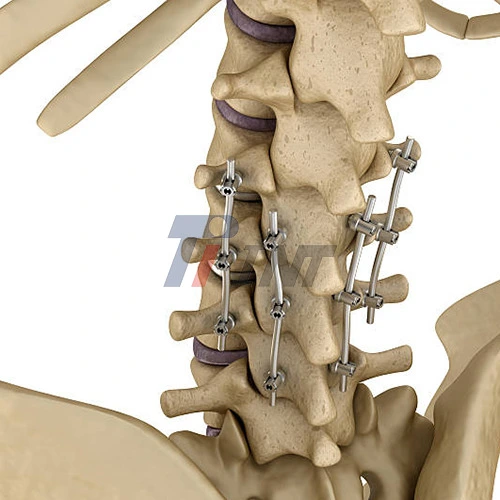

In spinal fusion operations, wire-derived parts keep the structure of the spine together across multiple vertebral segments while they are under constant axial and torsional stress. When used in tooth prosthetics, the alloy's surface stability and ease of machining make it possible to make accurate abutments and screws with consistent thread geometry.

Precision tool blanks like knife handles, forceps, and retractor parts also rely on the alloy's ability to be worked with. Manufacturers can choose from widths of 0.5 mm to 5 mm and cut lengths that can be changed. This means that production lines can get Gr5 titanium straight wire that is already the right size, which cuts down on waste from saw cuts and the number of steps needed to move the material.

Procuring Grade 5 Titanium Straight Wire: What B2B Buyers Should Know

Qualification Criteria That Protect Yield

When CMO and CDMO buying teams look for suppliers, they look at more than just price-per-kilogram. It is important that the Gr5 titanium straight wire has a diameter tolerance of at least h7 to h9 (as set by ISO), a surface cleanliness of at least Ra < 0.8 µm for polished grades, and the ability to be traced back to its heat number for each batch when it goes through precision laser cutting or chemical etching. A flaw on the surface that can't be seen with the naked eye can cause batch-level scrap during photochemical etching, which means that no money was saved on buying it.

Documentation and Rules for Compliance

There should be a Certificate of Analysis that can be linked to the production heat, dimensional inspection records, and source certificates under ISO 13485:2016 and ISO 9001:2015 with every shipment. EU-based CMOs also need EU CE documentation to meet their own audit requirements. The usual way to protect the integrity of the plan is to check these credentials before the first order, not during a live production run.

Lead Time and Packaging Considerations

Cut-to-size orders that come in protective film packages cut down on the time needed to prepare materials in-house and stop surface scratches that hurt the quality of the etch. The FAI cycle is shortened when you work with a provider that keeps responsive sampling capabilities. This cuts down on the usual 2–4 month approval timeline for new sources.

Conclusion

Grade 5 titanium is the best material for making medical devices because it has a unique set of qualities that make it stand out: it has a strength above 895 MPa, is biologically harmless, doesn't corrode over time, and is light compared to other metals. For contract makers that make orthopedic blanks, spinal components, and precise instrument parts, the quality of the material at the wire stage affects yield rates, audit results, and, in the end, keeping clients. The best way to protect all downstream value is to choose a provider that can supply certified Gr5 titanium straight wire, follow ISO 13485 standards, provide full heat tracking, and cut to size.

FAQ

Is Grade 5 titanium wire suitable for permanent implants?

Yes, Ti-6Al-4V has been used in permanent dental and orthopedic implants for a long time. Its passive oxide layer doesn't break down easily when exposed to living things, and it meets the biocompatibility standards set by ISO 10993. Dimensional and chemical stability in vivo has been proven by long-term tests that go back more than ten years of use.

How does its corrosion resistance compare to surgical stainless steel?

In chloride-rich environments like those found in biological tissue, Grade 5 titanium works better than 316L stainless steel. When implants are shaped and loaded in certain ways, stainless steel can develop crevice corrosion. If titanium's TiO₂ layer is damaged, it heals itself on its own, protecting the implant for its whole life.

Can wire be supplied in custom diameters and lengths?

Yes. The diameter ranges from 0.5 mm to 5 mm, and the lengths can be changed to fit the needs of the picture. You can get cut-to-size deliveries with deburring and protective film packaging. This gets rid of the need for in-house prep steps and lowers the risk of surface damage before precision processing further down the line.

What certifications should I verify before placing an order?

Make sure the certificates are valid for ISO 13485:2016, ISO 9001:2015, and EU CE. For each batch, ask for a Certificate of Analysis that can be used to track the heat and a measurement inspection report. These papers are needed for most CMO source approval checks.

Partner with Baoji INT Medical Titanium Co., Ltd. for Certified Gr5 Titanium Wire

Since 2003, Baoji INT Medical Titanium Co., Ltd. has sold medical titanium materials that are approved by ISO 13485:2016, ISO 9001:2015, and EU CE. We can supply Gr5 titanium straight wire with diameter tolerances of up to ±0.01 mm, full heat traceability, and delivery in protective packaging that is cut to size. If you need samples and information about how to use a new source or how to make a current program bigger, please email our team at export@tiint.com or go to inttitanium.com.

References

1. Brunette, D. M., Tengvall, P., Textor, M., & Thomsen, P. (Eds.). Titanium in Medicine: Material Science, Surface Science, Engineering, Biological Responses and Medical Applications. Springer. 2001.

2. Rack, H. J., & Qazi, J. I. Titanium alloys for biomedical applications. Materials Science and Engineering: C, 26(8), 1269–1277. 2006.

3. Niinomi, M. Mechanical biocompatibilities of titanium alloys for biomedical applications. Journal of the Mechanical Behavior of Biomedical Materials, 1(1), 30–42. 2008.

4. ASTM International. ASTM F136: Standard Specification for Wrought Titanium-6Aluminum-4Vanadium ELI Alloy for Surgical Implant Applications. ASTM International. 2013.

5. Geetha, M., Singh, A. K., Asokamani, R., & Gogia, A. K. Ti based biomaterials, the ultimate choice for orthopaedic implants — A review. Progress in Materials Science, 54(3), 397–425. 2009.

6. International Organization for Standardization. ISO 13485:2016 — Medical Devices — Quality Management Systems — Requirements for Regulatory Purposes. ISO. 2016.
