Why Titanium Is Ideal Material for Bone Implant Components

Titanium has revolutionized orthopedic and dental surgery over the past four decades, establishing itself as the gold standard for bone implant manufacturing. Among titanium grades, the Gr 5 Titanium Medical Bar—composed of Ti-6Al-4V ELI (Extra Low Interstitial) alloy—stands out as the material of choice for load-bearing applications. This alloy combines aluminum's strength enhancement with vanadium's stabilization properties, delivering a tensile strength exceeding 860 MPa while maintaining exceptional biocompatibility. Surgeons and device manufacturers rely on this material because it integrates naturally with bone tissue, resists corrosion in bodily fluids, and withstands repetitive mechanical stresses without failure, making it indispensable for hip stems, spinal cages, and dental abutments.

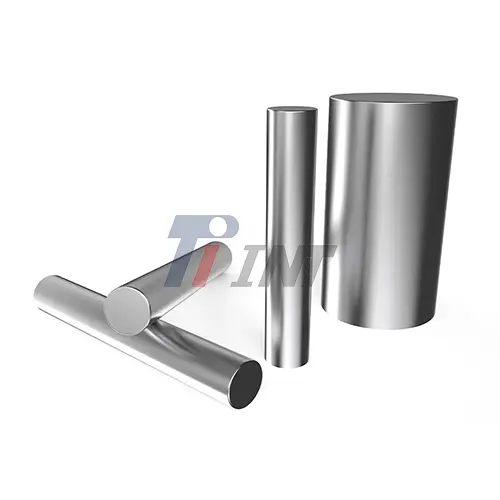

Understanding GR 5 Titanium Medical Bars: Composition and Properties

Alloy Composition and Metallurgical Characteristics

There are 6% aluminum, 4% vanadium, and 90% titanium in the Ti-6Al-4V alloy. Aluminum stabilizes the alpha phase, making the metal stronger and lighter, and vanadium stabilizes the beta phase, making it more flexible and easy to heat treat. The ELI variant limits the amount of oxygen to ≤0.13% and the amount of iron to ≤0.25%. This gets rid of interstitial embrittlement that could hurt fatigue performance. This exact chemistry makes an alpha-beta microstructure that strikes a balance between hardness and machinability, which is necessary for making complex implant shapes with great accuracy.

Mechanical and Physical Performance Parameters

Medical-grade Ti-6Al-4V bars have a minimum yield strength of 795 MPa and a final tensile strength of 860 MPa, which is about three times as strong as pure titanium types sold in stores. With a density of 4.43 g/cm³, the material is still 60% lighter than stainless steel, which makes recovery easier for patients. Its elastic modulus of about 110 GPa is lower than steel's (200 GPa) and higher than that of cortical bone (20–30 GPa). This means that it doesn't cause stress shielding, which happens when implants that are too stiff stop natural bone loading, which causes bone loss. The alloy has great fatigue strength at 510 MPa after 10 million cycles, which is very important for joints that have to handle repeated loading.

Regulatory Compliance and Quality Standards

The ASTM F136 and ISO 5832-3 standards are followed when making Gr 5 Titanium Medical Bar. These standards set strict requirements for the chemical makeup, mechanical qualities, and surface quality. These guidelines say that the product must not have any alpha-case (an oxygen-rich surface layer) and they need proof of tracking for every production lot. Material fit for Class III implantable devices is guaranteed by following FDA 21 CFR Part 820 and getting a CE mark under the Medical Device Regulation (EU) 2017/745. Suppliers who keep their ISO 13485:2016 certification are good for procurement teams because it ensures consistent quality management throughout the manufacturing process.

Why GR 5 Titanium Excels in Bone Implant Applications?

Biocompatibility and Osseointegration

The passive titanium dioxide layer that forms naturally on Ti-6Al-4V surfaces stops the release of ions and the breaking down of proteins, which stops the inflammatory responses that happen when other metals come into contact with the body. Osseointegration is the direct structural link between live bone and implant surface. This bio-inert behavior lets osteoblasts colonize implant surfaces. The Journal of Biomedical Materials Research has studies that show bone-to-implant contact rates are higher than 70% within six months, compared to 40% to 50% for stainless steel. This integration offers long-term security without cement fixation, which is especially helpful for younger patients who will need implant service for many years.

Superior Load-Bearing Capacity

When people do everyday things, they put complex, multidirectional forces on orthopedic implants. When you climb stairs, up to five times your body weight is put on a hip stem. Spinal fusion cages, on the other hand, have to withstand compressive forces of more than 2,000 Newtons. The high strength-to-weight ratio of the Ti-6Al-4V metal makes it strong without being too heavy. Its fatigue resistance stops cracks from spreading during cyclic loading, which is the main way implants fail. The American Academy of Orthopaedic Surgeons' clinical data shows that Ti-6Al-4V hip stems have a 98% survival rate at 15 years, which is better than cobalt-chrome alternatives.

Corrosion Resistance in Physiological Environments

Fluids that are high in chloride, changes in pH, and electrical activity make the human body an unfriendly and corrosive environment. Ti-6Al-4V is very resistant to pitting and crevice rust, so it can stay structurally sound even when it's exposed to salty human fluids all the time. The material doesn't break down when sterilized over and over again with autoclaving, gamma radiation, or ethylene oxide. This makes implants last longer and stops metallosis, which is tissue staining from metal ion release, that happened with older cobalt-chrome devices.

Comparing GR 5 Titanium Medical Bars with Alternative Materials

GR 2 Commercially Pure Titanium

Grade 2 titanium is very resistant to corrosion and is biocompatible, but its yield strength is only 345 MPa, which is not enough for load-bearing uses. Manufacturers of medical devices use GR 2 for dental implant bodies and maxillofacial reconstruction plates when the need for shapeability is greater than the need for strength. The cheaper price of the material makes it appealing for high-volume, non-critical uses, but it can't be used in hip or knee prostheses because it doesn't hold up well against wear.

Stainless Steel Alloys

Early implant designs were mostly made of 316L stainless steel because it was easy to make and didn't cost as much. Its higher elastic modulus (200 GPa) raises worries about stress shielding, and its nickel content (10–14%) causes allergic reactions in about 10% of cases. Corrosion can happen in salt settings, which releases ions and changes the color of the implant. Titanium is becoming more and more popular in the medical field, especially for permanent implants. Stainless steel, on the other hand, is only used for short-term fastening devices like bone pins and plates that are taken off after healing.

GR 23 Titanium and Cobalt-Chrome Alternatives

Grade 23 titanium (Ti-6Al-4V ELI with tighter interstitial controls) is slightly more flexible than GR 5, but it costs more, so it's only really worth it for specific uses that need cold forming. Cobalt-chrome metals are better at resisting wear on areas that move, like acetabular plates and femoral heads. But their mass (8.3 g/cm³) and elastic stiffness (240 GPa) make stems and cages less biomechanically useful. Often, procurement managers ask for Gr 5 Titanium Medical Bars for structural parts and cobalt-chrome for bearing surfaces. This makes all implant systems work better.

When engineering teams understand these material trade-offs, they can match specs with clinical needs. When implant life, patient safety, and surgical results are what matter most, the high cost of Gr 5 titanium is justified by its superior qualities.

Procurement Insights: How to Buy GR 5 Titanium Medical Bars for Your Business

Supplier Qualification and Certification Verification

To find reliable manufacturers, you have to look at a lot of qualification layers. Check the supplier's ISO 13485:2016 certification with recognized registrars and make sure they keep up with written quality management systems. Ask for material test records (MTRs) that show the chemical make-up, confirm the mechanical properties, and show how each lot can be tracked. Suppliers with a good reputation keep their FDA establishment registration up to date and provide a Declaration of Conformity for EU MDR compliance. As part of a site audit, manufacturing facilities like vacuum melting equipment, heat treatment ovens, and non-destructive testing facilities that are needed for medical-grade output are checked.

Pricing Dynamics and Bulk Order Considerations

Ti-6Al-4V bar prices change based on the cost of raw materials, the number of orders, and the difficulty of the specifications. Prices on the market right now run from $35 to $55 per kilogram for normal diameters that have been annealed and have a ground finish. When you commit to buying more than 500 kilos, you can usually get 12–18% off, but unique tolerances (h7 vs. h9) or special surface treatments cost an extra 8–15%. For stock sizes, lead times are 8–12 weeks, while for special sizes, they are 16–20 weeks. Setting up blanket purchase orders with scheduled releases is a good way to keep track of inventory costs and make sure there is enough capacity during busy production times.

Customization and OEM Service Capabilities

Manufacturers of advanced devices need providers who can provide more than just basic Gr 5 Titanium Medical Bar stock. Find partners who offer precise centerless grinding to get tolerances of ±0.02mm. This will cut down on the cost of secondary machining. Some providers offer bar straightening to reduce runout, which is very important for CNC processes that make implant stems. OEM services include cutting to length, separating lots for different production runs, and delivering just-in-time to match factory plans. These features make supply lines more efficient, which lowers the amount of work-in-process inventory and raises the efficiency of output.

Practical Applications and Case Studies of GR 5 Titanium in Medical Implants

Orthopedic Implant Systems

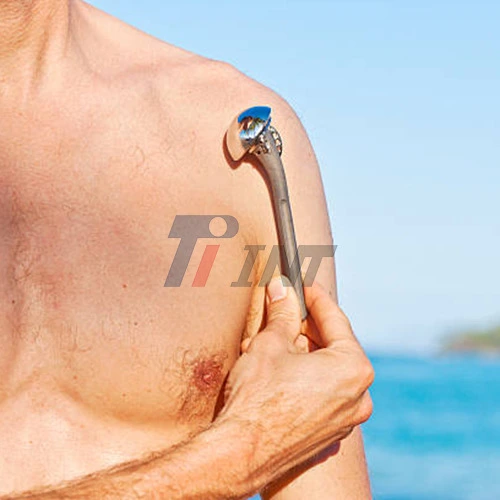

Joint replacement stems for the hip are where Ti-6Al-4V bars are used most often. Bars with diameters between 12 and 30 mm are machined into stems with tapered, anatomical, or modular designs. The material's fatigue resistance works with a range of fixation methods, from biological fixation for cementless press-fit stems to cemented designs that need stress to be transferred through bone cement mantles. Spinal fusion cages use bars with a width of 8 to 16 mm that are made into threaded or mesh structures. These structures provide compressive strength and allow bone grafts to be added through holes in the bars.

Dental Implant Applications

Dental implant makers shape Ti-6Al-4V bars into abutments and multi-unit bridges that need to be very strong while having a small cross-section. The material can handle biting forces greater than 700 Newtons and still has fine threads for connecting prosthetics. Custom abutment production has grown a lot, and now it can be done the same day from bar stock thanks to digital processes. The alloy can be easily machined into complex shapes, such as emergence profiles and anti-rotational features that are needed for good soft tissue management and prosthetic stability.

Innovation Trends and Future Applications

Using Ti-6Al-4V powder made from bar material in additive manufacturing lets doctors make devices that are custom made for each patient and have lattice structures that look like trabecular bone. These designs lower the difference in elastic stiffness and improve osseointegration by adding three-dimensional porosity. Plasma spraying and anodization are two surface modification technologies that make biological response even better. Bioactive surfaces that contain calcium phosphate or growth factors are being used in new ways to help bones fuse together faster. Keeping up with these changes helps procurement teams make sure that their strategies for getting materials will work in the future.

Conclusion

Titanium is used to make most bone implants because it has the best biocompatibility, technical performance, and long-term dependability of any material. The Gr 5 Titanium Medical Bar is designed to meet the special needs of load-bearing orthopedic and dental uses thanks to its high strength-to-weight ratio, resistance to fatigue, and ability to fuse with bone. When looking for these important parts, procurement professionals should know about the properties of the materials, how they compare to other options, and how to find qualified suppliers. As rules get stricter and patients' demands rise, it becomes necessary to work with experienced makers who keep strict quality systems in order to make medical devices that can compete.

FAQ

Q1: What makes GR 5 titanium superior to other implant materials?

A: The tensile strength of GR 5 titanium (Ti-6Al-4V ELI) is 860 MPa, and its density is 4.43 g/cm³. This means that it is as strong as stainless steel but only 60% as heavy. Its elastic stiffness (110 GPa) is closer to bone's than steel's (200 GPa), which means it protects against stress better and slows bone breakdown. The passive oxide layer of the material stops the release of ions, which stops the hypersensitivity reactions that happen with nickel-containing alloys and allows direct bone integration.

Q2: Can GR 5 titanium bars be customized for specific implant designs?

A: Reliable manufacturers allow for a lot of customisation, such as diameters from 6 to 80 mm, lengths cut to order, tolerances tightened to h7 precision, and surface finishing from as-rolled to centerless ground. A lot of providers offer services like straightening bars, chemical passivation treatments, and lot-specific paperwork to help with design proof and regulatory applications.

Q3: How do I verify supplier certification authenticity?

A: Instead of relying on copies provided by the supplier, get certificates directly from the organizations that issue them. Check that ISO 13485 is registered by using the website of the International Accreditation Forum. Use the FDA's online search tool to make sure that the business is registered with the agency. Ask for third-party material test reports from recognized labs, and for partnerships with a lot of work, you might want to do pre-award audits.

Partner with a Trusted Gr 5 Titanium Medical Bar Manufacturer

Baoji INT Medical Titanium Co., Ltd. has been in the titanium business for more than 30 years and can help medical device makers find reliable, approved materials. Our Gr 5 Titanium Medical Bars meet the requirements of ASTM F136 and ISO 5832-3. They are also certified by ISO 13485:2016 and come with full paperwork for tracking. We keep a large collection of parts with diameters ranging from 6 to 80 mm, and we can grind them to h7 tolerances for precision, so we can meet the needs of both concept development and high-volume production. During the whole process of making your product, our expert team helps you choose the right materials, make suggestions for how to process them, and make sure the quality is good. Send an email to export@tiint.com to get material test results, talk about customisation options, or set up a sample evaluation for your next implant program.

References

1. Long, M., & Rack, H.J. (1998). Titanium alloys in total joint replacement—a materials science perspective. Biomaterials, 19(18), 1621-1639.

2. American Society for Testing and Materials. (2013). ASTM F136-13: Standard Specification for Wrought Titanium-6Aluminum-4Vanadium ELI Alloy for Surgical Implant Applications. West Conshohocken, PA: ASTM International.

3. Niinomi, M. (2008). Mechanical biocompatibilities of titanium alloys for biomedical applications. Journal of the Mechanical Behavior of Biomedical Materials, 1(1), 30-42.

4. Geetha, M., Singh, A.K., Asokamani, R., & Gogia, A.K. (2009). Ti based biomaterials, the ultimate choice for orthopaedic implants—A review. Progress in Materials Science, 54(3), 397-425.

5. International Organization for Standardization. (2016). ISO 5832-3:2016: Implants for surgery—Metallic materials—Part 3: Wrought titanium 6-aluminum 4-vanadium alloy. Geneva: ISO.

6. Rack, H.J., & Qazi, J.I. (2006). Titanium alloys for biomedical applications. Materials Science and Engineering: C, 26(8), 1269-1277.
