Heat Treatment of Medical Grade Titanium Alloy Bars

Heat treatment of medical grade titanium alloy bars represents a critical manufacturing process that transforms raw titanium materials into high-performance components suitable for medical applications. Through precise temperature control and cooling protocols, manufacturers can optimize the mechanical properties of medical titanium bar materials, ensuring they meet stringent biocompatibility and strength requirements. This sophisticated metallurgical process directly impacts the success of implants, surgical instruments, and other medical devices that rely on titanium's exceptional characteristics.

Understanding Medical Grade Titanium Alloy Bars and Their Heat Treatment

Medical-grade titanium alloy bars serve as the backbone of modern implantable devices, with Ti-6Al-4V ELI (Extra Low Interstitial) leading as the gold standard in orthopedic and dental applications. These specialized materials possess unique properties that distinguish them from conventional metals used in other industries.

Superior Material Properties Compared to Alternatives

When examining material selection for medical applications, titanium alloys demonstrate remarkable advantages over traditional alternatives. Titanium exhibits a density of 4.51 g/cm³, significantly lower than stainless steel's 8 g/cm³, resulting in a superior strength-to-density ratio of 76 kN·m/kg—approximately 20% higher than stainless steel's 63 kN·m/kg. This exceptional strength-to-weight ratio allows medical devices to maintain structural integrity while minimizing patient burden.

The elastic modulus of titanium alloys closely matches human bone characteristics, measuring roughly half that of conventional stainless steel and cobalt-chrome alternatives. This mechanical compatibility reduces stress shielding effects in orthopedic implants, promoting natural bone remodeling and integration. Additionally, titanium's non-ferromagnetic properties and low thermal expansion coefficient make it ideal for patients requiring MRI examinations post-implantation.

Critical Role of Heat Treatment in Medical Applications

Titanium's full potential in medical applications is unlocked via a transformational procedure called heat treatment. Manufacturers may alter the microstructure of titanium alloys to produce certain mechanical qualities needed for various medical devices by carefully regulating heat cycles. When working with Ti-6Al-4V ELI, where exact control over interstitial materials guarantees good biocompatibility, the procedure becomes more important.

The heat treatment process directly influences grain structure, phase distribution, and residual stress levels within the material. These microstructural changes translate into measurable improvements in fatigue resistance, corrosion behavior, and overall mechanical performance—all essential factors for long-term implant success.

Core Heat Treatment Processes for Medical Titanium Alloy Bars

Procurement experts may make well-informed judgments on supplier capabilities and material standards by being aware of the many heat treatment techniques available for medical grade titanium alloys. Every therapeutic approach has a particular function and produces different results.

Annealing Process and Applications

The most basic heat treatment method for medical titanium bars is annealing, which is gradual cooling after controlled heating to temperatures between 700 and 850°C. This method successfully lowers residual stresses built up during manufacturing operations including rolling, machining, and forging. The annealing process increases the material's ductility and formability, which increases the predictability and efficiency of the following manufacturing processes.

The titanium alloy experiences recrystallization during annealing, which improves the grain structure and gets rid of work-hardening effects. Because the increased formability lowers the danger of cracking or dimensional distortion during production, this treatment is especially advantageous for medical devices that need intricate geometries or intensive machining operations.

Solution Treatment and Aging Sequences

Titanium alloy bars are heated to temperatures between 900 and 1000°C as part of the solution treatment process, and then they are quickly cooled to room temperature. This technique produces a supersaturated solid solution by dissolving strengthening phases back into the matrix. Precipitation is avoided during the cooling process by the quick cooling, which is often accomplished via water quenching. Controlled precipitation of strengthening phases is made possible by a subsequent aging treatment carried out at temperatures between 450 and 600°C.

The final mechanical qualities, such as hardness, yield strength, and tensile strength, may be precisely controlled thanks to this two-step procedure. This treatment approach is very adaptable for many medicinal applications since the aging duration and temperature may be changed to reach certain property requirements.

Stress Relieving Treatments

Remaining tensions are addressed by stress-relieving techniques without appreciably changing the mechanical characteristics of the material. These treatments, which are carried out at lower temperatures (usually between 480 and 650°C), lessen internal tensions that may cause dimensional instability or early failure during service. For precision medical components, where dimensional accuracy is crucial for the duration of the device's life, this procedure is very beneficial.

While permitting enough atomic mobility to lower stress concentrations, the stress-relieving procedure preserves the current microstructure. In order to ensure dimensional stability and lower the danger of stress corrosion cracking in the biological environment, this treatment often functions as the last thermal step for completed medical components.

Evaluating Heat Treatment Outcomes for Procurement Decision-Making

Key performance metrics that arise from efficient heat treatment procedures must be understood by procurement specialists. These metrics function as standards for assessing supplier competencies and guaranteeing material adherence to medical device specifications.

Essential Performance Metrics

Tensile strength is a key indicator of material performance, and following proper heat treatment, Ti-6Al-4V ELI usually reaches values of ≥895 MPa. Smaller, less intrusive implants may be designed with sufficient safety considerations because of this great strength. Furthermore, under dynamic loading circumstances, the elongation values ≥10% show enough ductility to avoid brittle failure modes.

For implants that are exposed to cyclic loads, such as orthopaedic joint replacements, fatigue resistance becomes more important. When correctly prepared, heat-treated titanium alloys may sustain millions of load cycles without failing, demonstrating remarkable fatigue performance. Improved patient outcomes and lower rates of revision surgery are directly correlated with its durability.

Certification and Compliance Standards

The basis for assessing the quality and uniformity of heat treatment is provided by international standards. While ISO 9001:2015 certification shows general quality system compliance, ISO 13485:2016 certification guarantees that heat treatment procedures satisfy medical device quality management criteria. EU CE certification ensures market access by confirming compliance with European medical device legislation.

Specific standards for material qualities and testing procedures are set by FDA and ASTM rules. These guidelines specify what constitutes acceptable mechanical, chemical, and microstructural qualities. More guarantee of consistent product quality and regulatory approval is offered by suppliers that show adherence to these criteria.

Comparative Analysis with Alternative Materials

Heat-treated titanium alloys routinely perform better in crucial areas as compared to other material solutions. Titanium provides better corrosion resistance and biocompatibility than stainless steel implants, lowering the possibility of unfavorable tissue responses. Titanium's lower elastic modulus more closely resembles the characteristics of bone, encouraging bone preservation and natural stress distribution.

Despite their great strength, cobalt-chrome alloys have greater elastic modulus values, which might result in stress shielding effects. Furthermore, titanium alloys are preferred by many manufacturers for long-term implant applications due to worries about cobalt ion leakage. Heat-treated titanium alloys are the best option for demanding medical applications because of their extensive property profile.

Selecting and Procuring Heat-Treated Medical Titanium Bars

Careful assessment of supplier capabilities, quality systems, and technical support services is necessary for the successful acquisition of heat-treated medical titanium bars. Suppliers must comprehend both metallurgical concepts and regulatory standards due to the intricacy of medicinal applications.

Supplier Evaluation Criteria

The basis for the successful creation of medical devices is provided by certified manufacturers with proven experience in heat treatment. In order to demonstrate compliance with medical device quality management systems, suppliers need keep their ISO 13485:2016 accreditation. Additionally, compared to companies that depend on outside contractors, providers with internal heat treatment capabilities have superior process control and traceability.

The capacity of the provider to offer comprehensive process specifications, material property information, and microstructural analysis demonstrates technical competency. In order to improve procedures for particular applications, suppliers should show that they understand the connection between heat treatment parameters and final qualities.

Quality Assurance and Documentation

Regulatory compliance and consistent material qualities are guaranteed by thorough quality assurance procedures. Comprehensive certificates detailing the mechanical characteristics, chemical composition, and heat treatment parameters should be included with every batch of heat-treated titanium bars. This paperwork helps regulatory filings and gives medical device makers crucial traceability.

Tensile testing, hardness measures, and microstructural analysis using defined methods should all be included in material testing. To guarantee measurement accuracy, suppliers should engage in proficiency testing programs and maintain calibrated testing equipment. Additionally, batch-to-batch uniformity lowers variability in downstream manufacturing activities and shows process control.

Customization and Technical Support

Prominent vendors provide customisation services that maximize the qualities of materials for certain medicinal uses. This capacity includes delivering different surface finishes (polished or sandblasted), modifying heat treatment settings to achieve desired mechanical qualities, and giving dimensional tolerances that lower the need for subsequent processing.

Technical support services improve the value proposition by offering advice on material selection, suggestions for processing, and help with issues. Suppliers with metallurgical experience may assist in resolving manufacturing issues that may emerge during device development and suggest ideal heat treatment parameters for novel applications.

Company Introduction and Our Medical Titanium Bar Solutions

Baoji INT Medical Titanium Co., Ltd. stands as a benchmark enterprise in medical titanium materials, founded in 2003 by Mr. Zhan Wenge, whose three decades of titanium industry experience drives our commitment to excellence. Our comprehensive understanding of heat treatment processes enables us to deliver superior medical titanium bars that meet the most demanding medical applications.

Advanced Manufacturing Capabilities

Our cutting-edge manufacturing facilities are equipped with sophisticated heat treatment machinery that can precisely regulate temperature and manage the atmosphere. For all significant heat treatment procedures, such as annealing, solution treatment, aging, and stress relief, we continue to have full internal capabilities. This vertical integration makes it possible to respond quickly to client needs and guarantees the best possible process control.

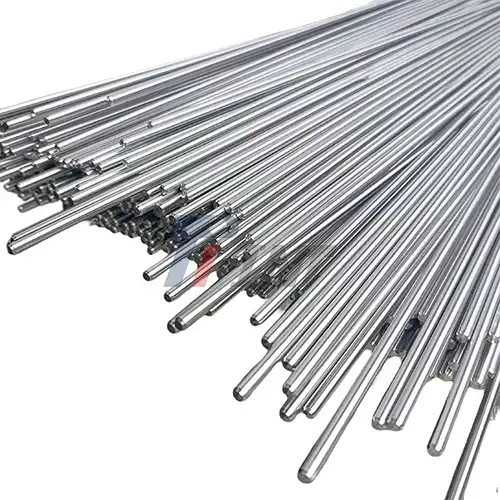

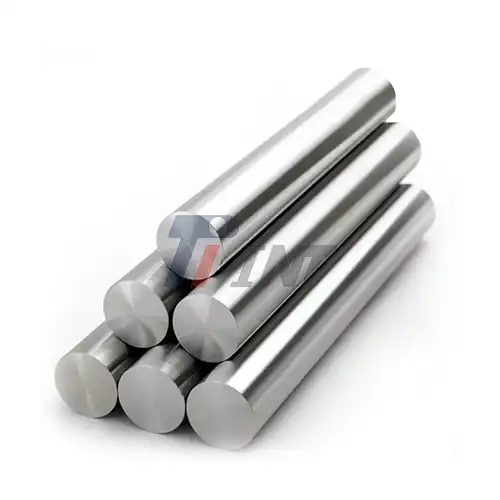

Pure titanium, Ti6Al4V, and Ti6Al4V ELI in a variety of specifications are included in our material catalog. To meet a variety of medical device needs, available diameters vary from 6 mm to 150 mm, and lengths range from 1000 mm to 3000 mm. Polished and sandblasted finishes are two surface alternatives that provide flexibility for various production processes and aesthetic needs.

Quality Certifications and Global Reach

Each product is subjected to stringent quality control procedures and is fully compliant with international standards. Our dedication to quality and regulatory compliance is shown by our ISO9001:2015, ISO13485:2016, and EU CE safety certifications. Customers may feel secure knowing that our products are suitable for medical applications around the globe thanks to these certifications.

With variable order amounts that may accommodate both development projects and large-scale manufacturing needs, our worldwide logistics network guarantees dependable delivery to clients across international markets. Our ability to reliably handle demanding medical device applications is shown by long-term cooperation with top OEMs globally.

Conclusion

One important method that turns raw materials into high-performing medical components is the heat treatment of medical-grade titanium alloy bars. Manufacturers may maximize mechanical qualities, improve biocompatibility, and guarantee long-term dependability in demanding medical applications by precisely controlling heat processes. Titanium alloys are the best option for implants, surgical tools, and medical equipment that need to operate exceptionally well because of the excellent qualities attained by appropriate heat treatment.

In addition to carefully assessing supplier capabilities and quality systems, successful procurement requires an awareness of the connection between heat treatment settings and material attributes. The significance of correctly heat-treated titanium materials will only grow as medical device technology develops, making supplier selection and technological collaborations more crucial for success.

FAQ

What heat treatment processes are most suitable for Ti-6Al-4V ELI medical implants?

Ti-6Al-4V ELI typically benefits from solution treatment followed by aging to achieve optimal strength and ductility balance. Solution treatment at 900-950°C followed by aging at 480-550°C provides excellent mechanical properties while maintaining biocompatibility. The specific parameters depend on the intended application and required property targets.

How does heat treatment improve corrosion resistance in medical titanium bars?

Heat treatment optimizes the microstructure by promoting uniform phase distribution and reducing residual stresses that can serve as corrosion initiation sites. Proper annealing creates a stable microstructure with improved passive film formation characteristics, enhancing long-term corrosion resistance in biological environments.

Can heat treatment parameters be customized for specific medical applications?

Yes, heat treatment parameters can be tailored to achieve specific property combinations required for different medical applications. Our technical team works closely with customers to develop optimized heat treatment schedules that balance strength, ductility, and other critical properties based on the intended use and performance requirements.

Partner with Baoji INT Medical Titanium Co., Ltd. for Superior Heat-Treated Medical Titanium Bars

Baoji INT Medical Titanium Co., Ltd. combines over two decades of manufacturing excellence with cutting-edge heat treatment capabilities to deliver medical titanium bar solutions that exceed industry standards. Our comprehensive quality certifications, including ISO13485:2016 and EU CE marking, ensure regulatory compliance while our technical expertise guarantees optimal material properties for your specific applications. Contact our expert team at export@tiint.com to discuss your medical titanium bar supplier requirements and discover how our advanced heat treatment processes can enhance your medical device performance.

References

1. Boyer, R., Welsch, G., & Collings, E.W. (2007). Materials Properties Handbook: Titanium Alloys. ASM International, Materials Park, OH.

2. Lutjering, G., & Williams, J.C. (2003). Titanium: Engineering Materials and Processes. Springer-Verlag, Berlin, Germany.

3. Rack, H.J., & Qazi, J.I. (2006). Titanium alloys for biomedical applications. Materials Science and Engineering C, 26(8), 1269-1277.

4. ASTM F136-13 (2013). Standard Specification for Wrought Titanium-6Aluminum-4Vanadium ELI (Extra Low Interstitial) Alloy for Surgical Implant Applications. ASTM International, West Conshohocken, PA.

5. Niinomi, M. (2008). Mechanical biocompatibilities of titanium alloys for biomedical applications. Journal of the Mechanical Behavior of Biomedical Materials, 1(1), 30-42.

6. ISO 5832-3:2016. Implants for surgery - Metallic materials - Part 3: Wrought titanium 6-aluminum 4-vanadium alloy. International Organization for Standardization, Geneva, Switzerland.
