Titanium Bars for Medical vs Aerospace Use

When selecting materials for critical applications, understanding the nuanced differences between implant grade titanium industrial bar specifications becomes paramount for procurement professionals. Medical and aerospace industries each demand titanium bars with specific properties that align with their unique performance requirements. While both sectors rely on titanium's exceptional strength-to-weight ratio and corrosion resistance, the biocompatibility standards for medical implants and the extreme environmental demands of aerospace applications create distinct material selection criteria that influence manufacturing processes, certification requirements, and ultimately, procurement decisions.

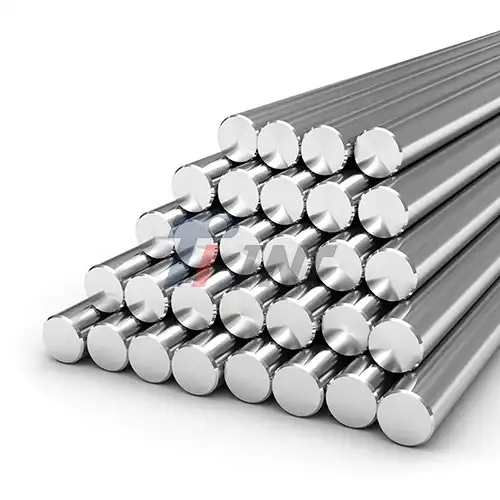

Understanding Implant Grade Titanium Bars

In order to successfully acquire titanium, it is essential to have a solid understanding of the metallurgical properties that identify implant grade materials. These unique titanium bars are the apex of biomedical engineering, which is the intersection of material science and severe safety criteria.

Chemical Composition and Purity Standards

Commercially pure titanium (CP Ti) Grade 4 or the titanium alloy Ti-6Al-4V ELI (Extra Low Interstitial) are the two types of titanium that are frequently used in the production of implant grade titanium bars. The fact that Grade 4 CP Ti has a maximum oxygen concentration of 0.4% is one of the factors that contributes to its exceptional mechanical strength while also continuing to preserve its great biocompatibility. Due to the fact that the oxygen residuals demonstrate a clear correlation with the material's mechanical qualities, this grade is the one that is employed the most often for dental and orthopedic implants.

Ti-6Al-4V ELI is a further important category that is comprised of 6% aluminum and 4% vanadium, together with reduced interstitial elements. Enhanced strength properties are provided by this composition, but the biocompatible nature that is necessary for long-term implantation is maintained. Vanadium functions as a beta-phase stabilizer, adding to the overall performance profile of the alloy, while aluminum operates as an alpha-phase stabilizer, improving strength while lowering density. Both of these properties contribute to the alloy's overall performance profile.

Mechanical Properties and Performance Characteristics

Implant grade titanium bars are distinguished from regular industrial titanium by the mechanical qualities that they possess. For these materials, the tensile strengths may range anywhere from 550 to 860 MPa, depending on the particular grade and the circumstances under which the heat treatment was performed. The structural integrity that is necessary for load-bearing applications is provided by the yield strength, which normally ranges from 485 to 795 MPa.

In medical applications, where implants are required to sustain millions of cycle loads over the course of their service life, fatigue resistance becomes a very important factor. Titanium of implant grade has remarkable fatigue performance, with endurance limits sometimes surpassing 500 MPa when subjected to the right testing conditions. This quality assures that the product will remain reliable over time in dynamic loading conditions, which are used often in dentistry and orthopedic applications.

Biocompatibility and Osseointegration Properties

It is the capacity of implant-grade titanium bars to produce a stable oxide layer when they are exposed to physiological conditions that contributes to their biocompatibility. A process known as osseointegration is facilitated by this passive oxide coating, which also inhibits the release of ions and encourages the integration of tissue. Because of the inert nature of the material, bone tissue is able to grow directly onto the surface of the implant, which results in the formation of a strong biological link that is necessary for the durability of the implant.

The biological reaction is significantly influenced by the surface characteristics of the substance. Several surface treatments may be applied to titanium bars in order to improve their osseointegration rates. These treatments can modify the roughness and topography of the bars. Because of these alterations, cellular adhesion, proliferation, and differentiation are all affected, which eventually has an effect on the clinical success of implanted technological devices.

Comparing Titanium Bars for Medical vs Aerospace Applications

Material requirements and performance standards must be varied for medical applications and aeronautical applications because of the various operating conditions of these two types of applications. For instance, implant grade titanium industrial bar is specifically designed to meet the rigorous biocompatibility and mechanical performance standards required in medical settings. Having an understanding of these distinctions helps one to make educated purchase choices that are in line with the needs of a particular application, ensuring the material's suitability and compliance with industry-specific regulations.

Mechanical Performance Requirements

The biocompatibility and moderate mechanical qualities that are suited for human physiology are the most important considerations for medical applications. Titanium bars designed for use in implants need to have a level of strength that is enough to handle physiological stresses while yet being compatible with biological tissues. When it comes to medical applications, the levels of stress that are experienced are seldom higher than those that are experienced during normal human activities, which generally range from walking to moderate sports exertion.

Titanium bars that are able to endure intense mechanical loads, temperature fluctuations, and climatic conditions are required for use in aerospace applications. Grade 5 titanium, often known as Ti-6Al-4V, is typically used for aerospace applications since it has stronger tensile qualities than medical grades. It is possible for the tensile strength to reach 1000 MPa or greater, which is much higher than the standards for medical grade. The performance of these materials must be dependable from temperatures ranging from -55 degrees Celsius to 600 degrees Celsius, while also preserving their structural integrity in the face of high-frequency vibrations and cyclic stress.

Environmental Resistance and Durability

There is a significant difference in the criteria for corrosion resistance between the aeronautical environment and the medical environment. Titanium, when used in medical applications, is subjected to physiological fluids that are reasonably harmless and have pH values that are close to neutral. The presence of proteins, enzymes, and cellular activity, on the other hand, results in the formation of a complex biological milieu that necessitates long-term stability throughout the course of decades of service.

Exposure to jet fuels, hydraulic fluids, salt spray, and high temperature cycling are some of the issues that are prevalent in conditions that are associated with aerospace industry. Especially in the presence of hot salt conditions, which are typical in marine-based activities, titanium bars that are intended for use in aerospace must exhibit resistance to stress corrosion cracking. There is a clear correlation between the performance of the material under these circumstances and the safety and operational dependability of the aircraft.

Certification and Quality Standards

The FDA regulations, ISO 13485 quality management systems, and ASTM standards that are unique to biomedical applications must all be adhered to in order for medical titanium bars to be considered compliant. Not only do these rules cover the qualities of the materials, but they also cover the production processes, the requirements for traceability, and the post-market monitoring. As a result of the direct influence that medical applications have on human health, the documentation requirements for these applications often surpass those of aerospace applications.

In accordance with the AS9100 quality management systems, the FAA rules, and the military standards, aerospace titanium bars are manufactured in accordance with the application. The process control, statistical quality control, and supply chain management are the three areas that are emphasized by these standards. There are comprehensive testing protocols and qualifying processes that are a part of the certification process. These procedures might take many years to complete for new suppliers.

Procurement Considerations for Implant Grade Titanium Industrial Bars

In order to successfully acquire implant-grade titanium materials, it is necessary to do a thorough review of the capabilities of the suppliers, the quality systems, and the logistical factors involved. For example, when sourcing implant grade titanium industrial bar, careful attention must be paid to the supplier's expertise in producing high-quality, biocompatible materials. Because of the intricacy of these materials, it is necessary to take a strategic approach to the selection of vendors and the maintenance of relationships, ensuring both quality and reliability throughout the supply chain.

Supplier Qualification and Certification Requirements

In order to choose suitable suppliers, it is necessary to evaluate their ISO 13485:2016 medical device quality management system certification. This certification confirms that the supplier complies with the regulatory criteria for the production of medical devices. In order to manufacture medical devices, suppliers are required to maintain FDA registration and hold applicable ASTM certifications for titanium materials. It is necessary to do a thorough examination of the supplier's quality history, which should include any FDA warning letters or quality problems.

An evaluation of the supplier's melting techniques is included in the manufacturing capacity assessment. For the manufacture of high-purity titanium, conventional melting methods such as vacuum arc remelting (VAR) or electron beam melting are often required. Chemical analysis, mechanical testing, and microstructural assessment has to be included in the testing capabilities of the provider. It is possible that further advanced testing, such as fatigue testing and biocompatibility assessment, may be required depending on the application that is planned to be used.

Supply Chain Management and Lead Times

The fabrication of titanium bars includes a number of intricate manufacturing procedures, which normally take between eight and sixteen weeks to complete for conventional standards. Through the use of sophisticated heat treatments or custom alloy compositions, lead times may be extended to twenty to twenty-four weeks. When designing production schedules and inventory management techniques, procurement experts are need to take into consideration the expanded timescales that have been established.

The robustness of the supply chain becomes very important when considering the restricted number of certified titanium manufacturers across the globe. Through the development of connections with various suppliers, it is possible to reduce the risks associated with supply disruptions; nevertheless, the certification of new suppliers takes a major commitment of both time and resources. It is possible to sustain production continuity via the use of strategic inventory management, which includes the maintenance of a safety supply for essential commodities.

Cost Considerations and Value Engineering

In order to reflect the particular production needs and quality standards, the price structure for implant grade titanium bars is designed in this manner. The cost of the material might vary anywhere from thirty dollars to eighty dollars per kilogram, depending on the grade, the requirements, and the order quantity. Opportunities for value engineering may be found by improving material specifications in order to achieve performance requirements without over-specificating the material.

When managing costs over the long run, it is important to take into account the total cost of ownership, which includes the price of materials, the expenditures of testing, and any possible quality problems. Price stability and preferred allocation during times of supply limitations may be achieved via the establishment of long-term agreements with qualified suppliers. The cost of certifying suppliers and conducting continuing audits have to be taken into consideration when making choices about procurement.

Advantages of Implant Grade Titanium Bars in Various Industries

As a result of the distinctive characteristics of implant grade titanium bars, they provide significant benefits across a wide range of industrial applications, therefore generating potential for the optimization of materials across industries and the reduction of costs. For example, implant grade titanium industrial bar offers exceptional strength, corrosion resistance, and biocompatibility, which can be leveraged in both medical and industrial sectors to improve performance and efficiency while minimizing long-term expenses.

Medical Industry Benefits

Titanium's remarkable biocompatibility, which removes worries about hazardous reactions or immune system responses, results in a number of advantages for the medical industry. The modulus of elasticity of the material is very similar to that of human bone, which helps to reduce the stress shielding effects that may lead to bone resorption surrounding implants. Because of this compatibility, the lifetime of the implant is increased, and patient outcomes are improved.

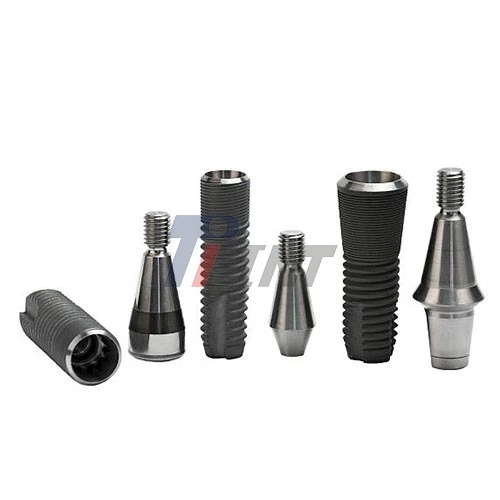

When it comes to dental applications, where patient comfort directly influences treatment acceptability, weight concerns become more crucial. Because titanium has a low density, it is able to give strength without being too heavy. This makes it possible to develop prosthetic devices that are pleasant even for patients to wear continually. Because of the material's non-magnetic qualities, patients who have titanium implants are able to undergo magnetic resonance imaging (MRI) treatments without experiencing any picture artifacts or safety problems.

Aerospace Industry Applications

Applications in the aerospace industry take use of titanium's remarkable strength-to-weight ratio, which offers substantial weight reductions in comparison to components made of steel. The average component made of titanium weighs around forty to fifty percent less than an identical part made of steel, while continuing to preserve equal strength qualities. Due to the decrease in weight, there is a direct correlation between the improved fuel economy and the higher payload capacity.

Due to the material's ability to work well at high temperatures, it is an excellent choice for engine components and airframe structures that are subjected to situations with a higher temperature. Titanium is able to keep its mechanical qualities even at temperatures that cause aluminum alloys to become softer. This allows aerospace equipment to have a wider range of operating capabilities. In many applications, the corrosion resistance removes the need for protective coatings, which in turn reduces the amount of maintenance that is required and the expenses associated with the lifetime.

Emerging Cross-Industry Applications

The potential uses for implant grade titanium bars as feedstock material for 3D printing techniques have been broadened as a result of recent breakthroughs in additive manufacturing. This technique makes it feasible to produce complicated geometries that would be hard to produce using conventional manufacturing processes. As a result, it opens up new design possibilities for applications in the aerospace and medical industries.

Titanium is increasingly being used in the consumer electronics sector for consumer gadgets because of its biocompatibility, resistance to corrosion, and aesthetic appeal. Titanium housings are used by makers of smartphones to produce a luxury look while also offering durability and hypoallergenic characteristics. When it comes to these applications, implant grade materials are often specified in order to guarantee skin compatibility during prolonged contact.

Why Choose Baoji INT Medical Titanium Co., Ltd. for Implant Grade Titanium Bars?

Baoji INT Medical Titanium Co., Ltd. stands as a benchmark enterprise in the medical titanium industry, with over two decades of specialized experience in developing and manufacturing high-quality titanium materials. Our comprehensive understanding of both medical and aerospace requirements positions us as an ideal partner for organizations seeking reliable implant grade titanium industrial bar solutions.

Industry Expertise and Manufacturing Excellence

The combination of our company's twenty-year concentration on medical-grade materials and the thirty years of experience that our founder has in the titanium business gives us with an unrivaled level of skill in comprehending the needs of our customers and the trends that are occurring in the industry. Our company has made significant investments in cutting-edge technology and equipment, which guarantees that our goods are up to the most demanding quality requirements that are necessary for applications that are of crucial importance.

Our skills in manufacturing span the whole production spectrum, beginning with the processing of raw materials and ending with completed products like as rods, wires, plates, and precision forged components. We are able to maintain stringent quality control throughout the whole of the production process thanks to this vertical integration, which also enables us to provide our clients with full material solutions sourced from a single reliable source.

Comprehensive Certification and Quality Assurance

The international quality system certification ISO 9001:2015, the medical device quality management system certification ISO 13485:2016, and the European Union CE safety certification are all among the certifications that we sustain. These certifications are evidence that we are dedicated to ensuring that all of our activities comply with regulatory requirements and maintain the highest possible quality standards inside our organization.

Our methods for quality assurance include exhaustive testing and documentation, which enables us to give total traceability from the raw ingredients to the completed goods. The regulatory compliance needs of our clients are supported by this documentation, which also offers the essential confidence for key applications in which the performance of the material directly effects safety and reliability and provides support for those requirements.

Customer-Focused Service and Support

We are aware that effective material procurement involves more than just the provision of materials; it also involves offering extensive technical assistance and customer service. Customers are able to improve their product development and production processes with the assistance of our technical staff, which offers experienced information on the selection of materials, processing suggestions, and application-specific concerns.

The fact that we have maintained ties with clients that have lasted for more than a decade is evidence of our dedication to establishing long-term partnerships rather than maintaining transactional relationships. We maintain strong relationships with our clients in order to get an understanding of their ever-evolving requirements and to create solutions that ensure the development and success of their businesses in highly competitive marketplaces.

Conclusion

The selection between medical and aerospace grade titanium bars requires careful consideration of application-specific requirements, regulatory compliance needs, and long-term performance expectations. While both applications benefit from titanium's exceptional properties, the distinct demands of biocompatibility in medical applications versus extreme environmental resistance in aerospace applications necessitate different material specifications and supplier qualifications.

For example, implant grade titanium industrial bar would be selected for medical applications due to its superior biocompatibility, while aerospace-grade titanium would be chosen for its ability to withstand harsh environmental conditions. Successful procurement strategies must balance cost considerations with quality requirements while ensuring reliable supply chain management. Understanding these nuanced differences enables procurement professionals to make informed decisions that support their organizations' operational success and regulatory compliance objectives.

FAQ

Q1: What distinguishes implant grade titanium from aerospace grade titanium?

A: Implant grade titanium prioritizes biocompatibility and meets strict medical device regulations, typically using CP Ti Grade 4 or Ti-6Al-4V ELI with reduced interstitial elements. Aerospace grade titanium, usually Ti-6Al-4V Grade 5, emphasizes higher mechanical strength and temperature resistance for demanding structural applications. The manufacturing processes, testing requirements, and certification standards differ significantly between these applications.

Q2: How can I verify the quality and certifications of titanium bar suppliers?

A: Verify suppliers maintain ISO 13485:2016 for medical applications and relevant ASTM certifications for titanium materials. Request documentation of their quality management systems, FDA registration status, and recent audit reports. Evaluate their testing capabilities, including chemical analysis and mechanical testing equipment. Consider conducting supplier audits and reviewing customer references to assess their track record and capabilities.

Q3: What are typical lead times and minimum order quantities for implant grade titanium bars?

A: Standard implant grade titanium bars typically require 8-16 weeks lead time, while custom specifications may extend to 20-24 weeks. Minimum order quantities vary by supplier and specifications, generally ranging from 100-500 kilograms for standard grades. Custom alloy compositions or specialized processing may require larger minimum orders. Planning procurement well in advance helps ensure timely delivery and optimal pricing.

Partner with Baoji INT Medical Titanium Co., Ltd. for Superior Implant Grade Titanium Solutions

Baoji INT Medical Titanium Co., Ltd. brings over 20 years of specialized expertise as a trusted implant grade titanium industrial bar manufacturer serving medical device companies worldwide. Our comprehensive product line, rigorous quality management systems, and customer-focused approach ensure you receive materials that meet your exact specifications and regulatory requirements. Contact our technical team at export@tiint.com to discuss your specific requirements, request samples, or obtain detailed quotations that support your procurement objectives and manufacturing success.
